Disclaimer
These operating instructions apply exclusively to the following Instrument type:
HMD-5000 (Humidifier)
HMD-5000 (Humidifier)
People working with the tool must have read these operating instructions carefully and understood them before starting any work. The basic prerequisite for safe working is compliance with all safety and procedural instructions detailed in this Manual.
The tool must be used for its intended purpose and may only be operated by trained and authorized personnel. Any operation or maintenance that does not comply with the intended and stated purpose of the tool may result in hazards.
These operating instructions ensure safe and efficient handling and usage of the tool. The instructions are an integral part of the instrument and must always be kept in direct proximity. It must be available and accessible to personnel at all times. These operating instructions are also available in electronic PDF format.
The contents of these operating instructions are the property of RTEC Instruments Inc. and are intended exclusively for customers of RTEC Instruments Inc. Any unauthorized changes are forbidden.
Only the purchaser, authorized users, and future purchasers of products from RTEC Instruments Inc. are permitted to use these operating instructions. They shall not be distributed or sold without the express written permission of RTEC Instruments Inc.
Illustrations in these operating instructions are intended for general information and may differ from the actual design.
Please get in touch with your local representative if you have any questions or comments regarding these operating instructions.
Please have the following information at hand when making inquiries:
- System type
- System Serial Number
In case of problems: precise description or exact error message
Safety
Electrical Safety
- Ensure that the humidifier is plugged into a grounded electrical outlet.
- Avoid using extension cords or adapters, as they can increase the risk of electrical hazards.
- Check the power cord regularly for any signs of damage, and refrain from using the humidifier if the cord is frayed or damaged.

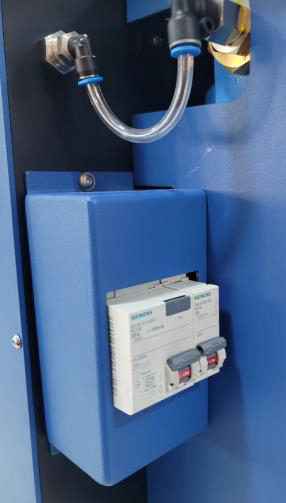

- ELCB provided to prevent electric shock and fire hazards caused by ground faults or leakage currents.
Water Safety
- Only use clean, distilled water or demineralized water in the humidifier to prevent the buildup of mineral deposits and the growth of bacteria or mold.
- Refrain from using essential oils or additives unless specified by the manufacturer, as they may damage the humidifier or pose health risks.
Child Safety
- Keep the humidifier out of reach of children and pets to prevent accidental ingestion or tampering.
- Educate children about the potential dangers associated with the humidifier, such as hot steam or electrical hazards.
Overheating Prevention
- Avoid running the humidifier continuously for extended periods without proper breaks to prevent overheating.
- Use the humidifier in accordance with the manufacturers recommended usage guidelines to avoid damage or malfunction.
Placement
- Place the humidifier on a flat, stable surface away from heat sources, direct sunlight, and electronic devices.
- Ensure that there is sufficient airflow around the humidifier to prevent overheating.
Warnings

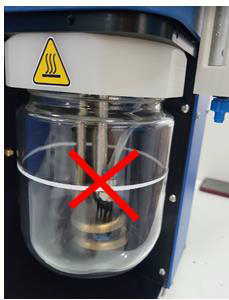

- DO NOT OPERATE HUMIDIFIER WITH OUT WATER INSIDE THE GLASS JAR
- Familiarize yourself with the warning signs and symbols on the humidifier and its packaging, and adhere to them strictly.
- Do not attempt to modify or repair the humidifier yourself; always seek professional assistance if repairs are needed.
- When not in use, store the humidifier in a cool, dry place away from dust and debris.
- Empty the water tank and clean the humidifier thoroughly before storing it for an extended period.
Facility Requirements and Accessories
Facility Requirements
Given the encumbrance of the humidifier should be installed in a place where the following conditions, power and compressed air:
- Ambient temperature 23-25 °C
- Supply power 230 VAC, 5A, 50Hz
- Compressed air supplies Min. 6 bar Pressure
Sufficient space for the Operator, in accordance with local laws and safety norms.

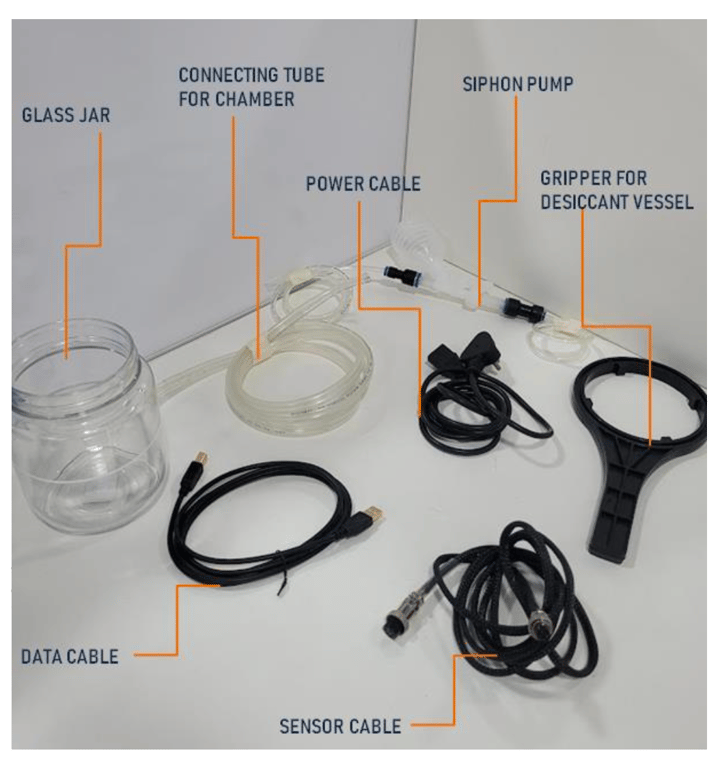

Accessories
Device Presentation

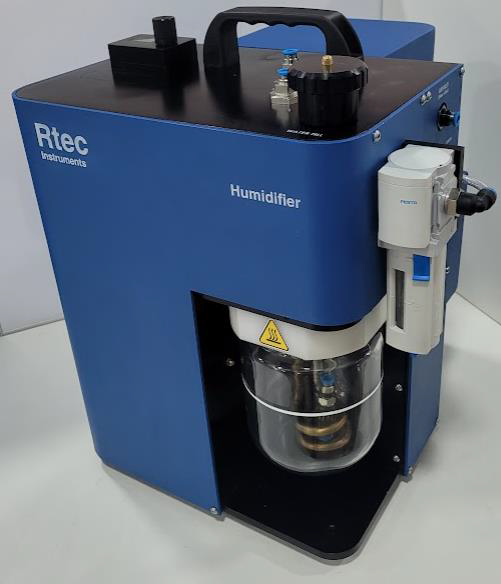

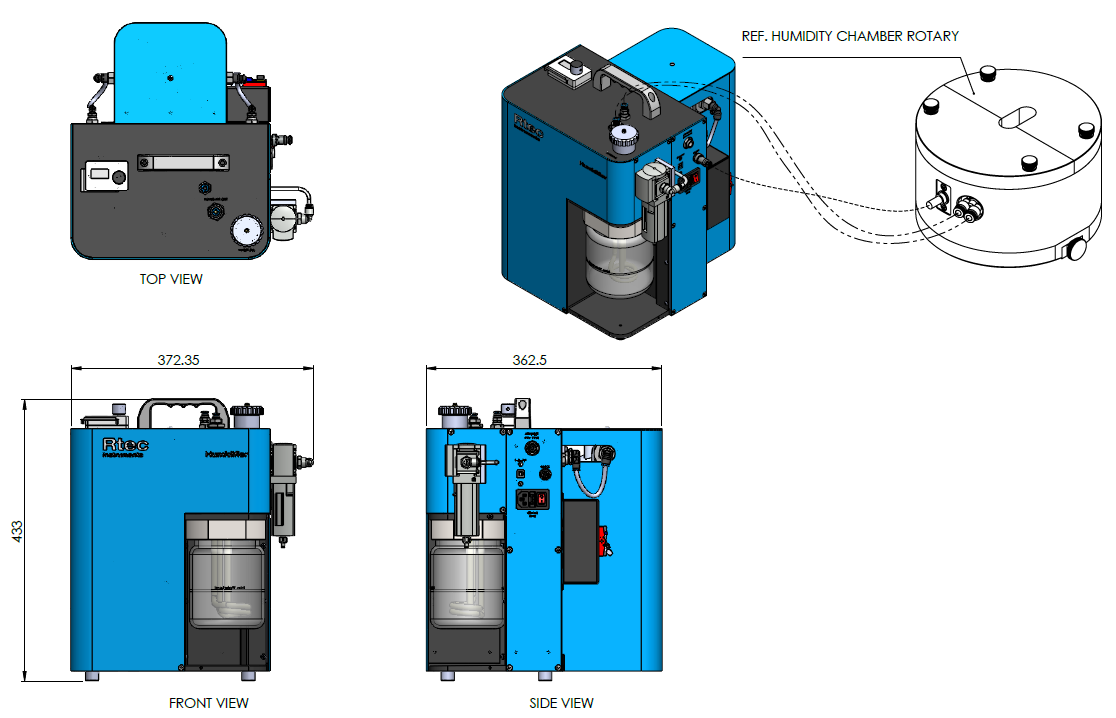

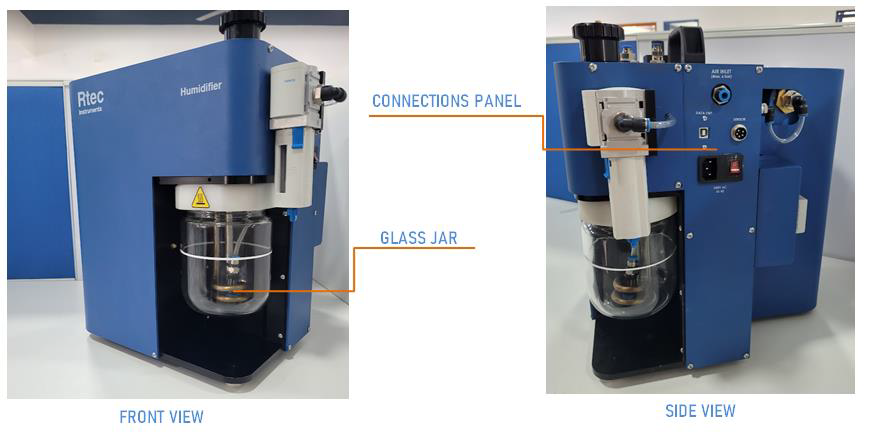

Components Presentation

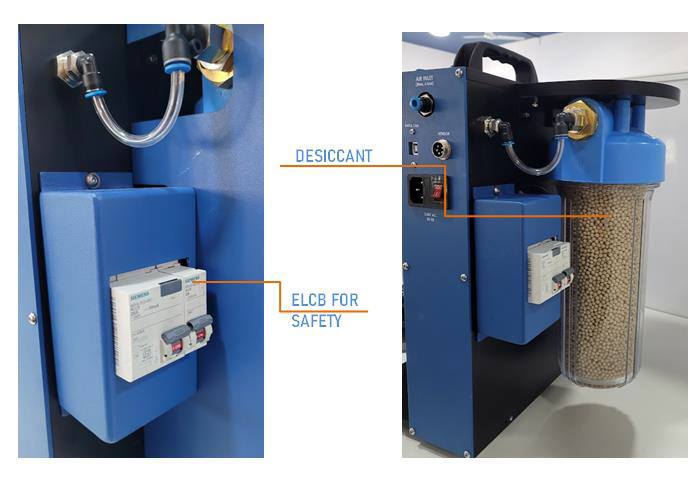

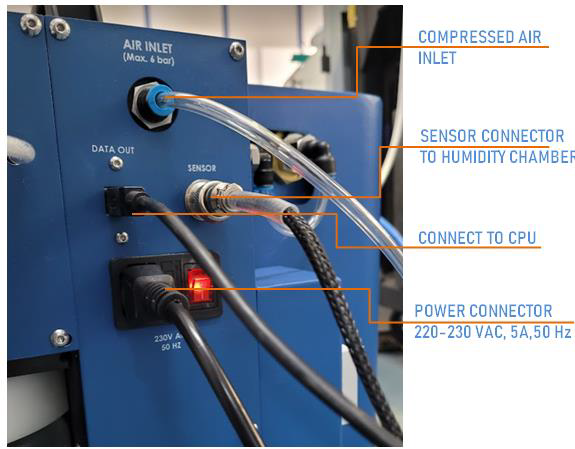

Connections details
Initiation Process
Read the Manual
Familiarize yourself with the manufacturer's instructions and recommendations provided in the user manual. Pay attention to specific guidelines related to setup, operation, maintenance, and safety precautions.
Inspect the Humidifier
Before use, inspect the humidifier for any visible damage, cracks, or signs of wear. Check the power cord, water tank, and any other components for integrity.
Choose the Right Location
Select an appropriate location for the humidifier. It should be placed below the humidity chamber on a flat, stable surface away from heat sources, direct sunlight, and electronic devices. Ensure that there is sufficient space around the humidifier for proper airflow.
Prepare Clean Water

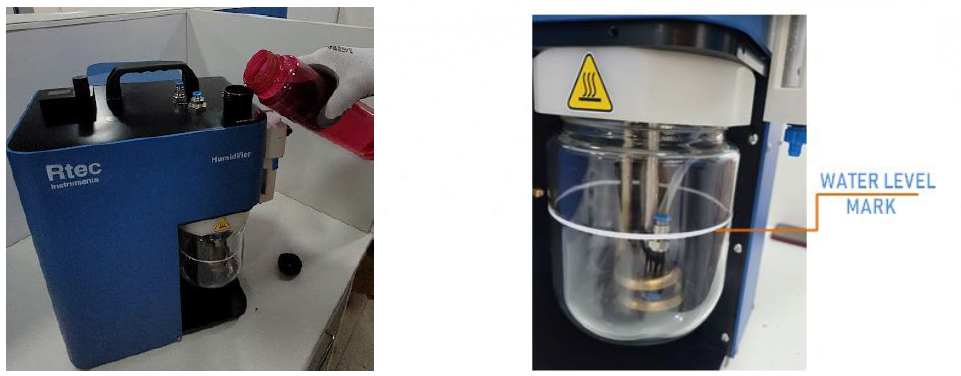

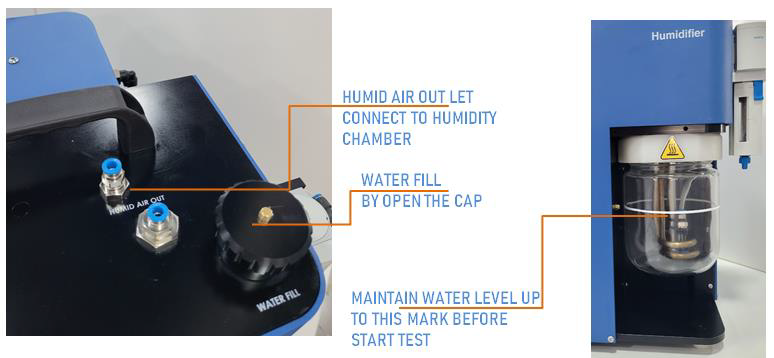

Use only clean, distilled water or demineralized water in the humidifier. Avoid using tap water, as it may contain minerals and impurities that can lead to mineral buildup or bacterial growth. Fill the water tank with the water to the appropriate level as shown below. Always fill the water in OFF condition of the humidifier.
Connect to Power
Plug the humidifier into a grounded electrical outlet. Avoid using extension cords or adapters whenever possible, as they may increase the risk of electrical hazards. Ensure that the power cord is not damaged or frayed.
Monitor Operation
Regularly check the humidifier during operation to ensure that it is working as expected. Pay attention to the humidity level in the room and adjust the settings accordingly.
Remove the water inside the filter

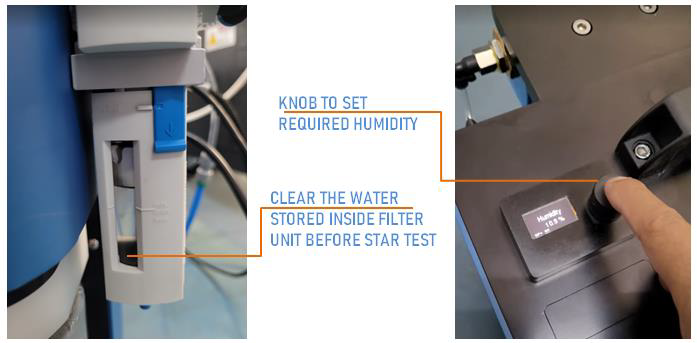

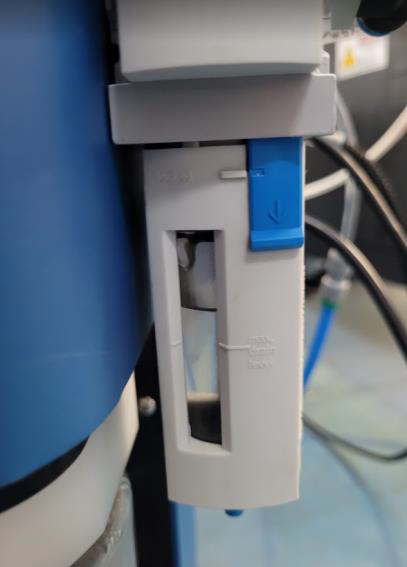

Before start the humidifier check the water presence in the filter as shown below:
Install the Chamber

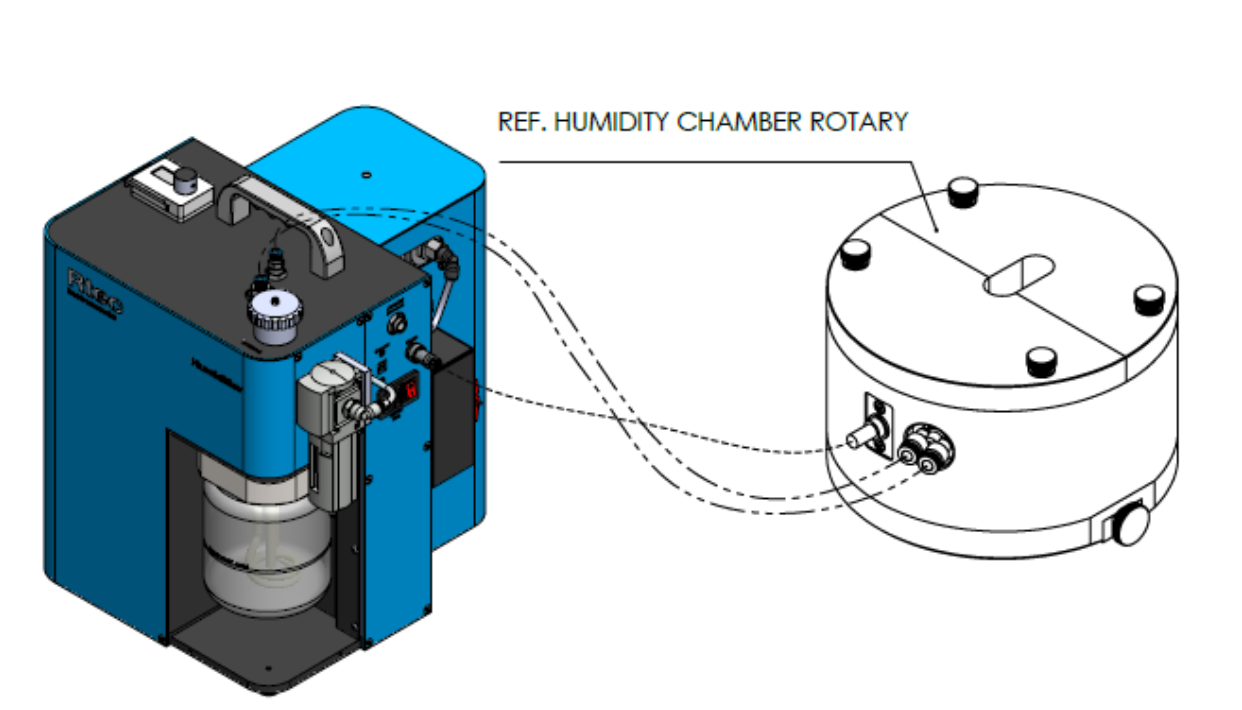

Please refer to the Installation manual of your specific humidity chamber.
Connect the sensor cable and air cable

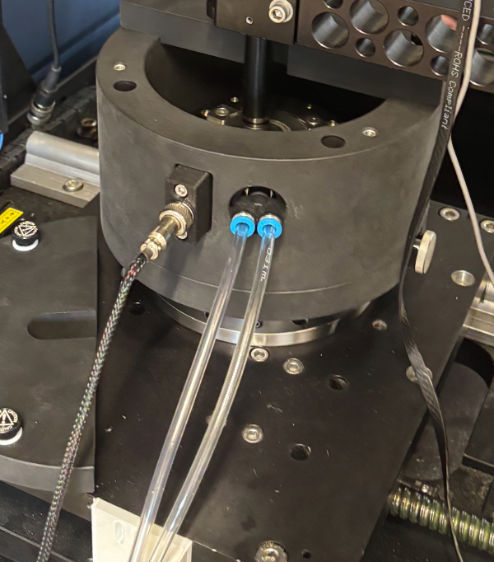

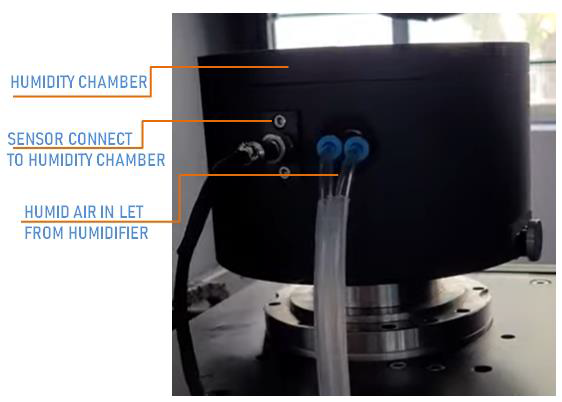

Connect the humidity sensor cable and both air tubes to the humidity chamber by following the Installation manual of your specific humidity chamber.
Set humidity
Set Room Humidity

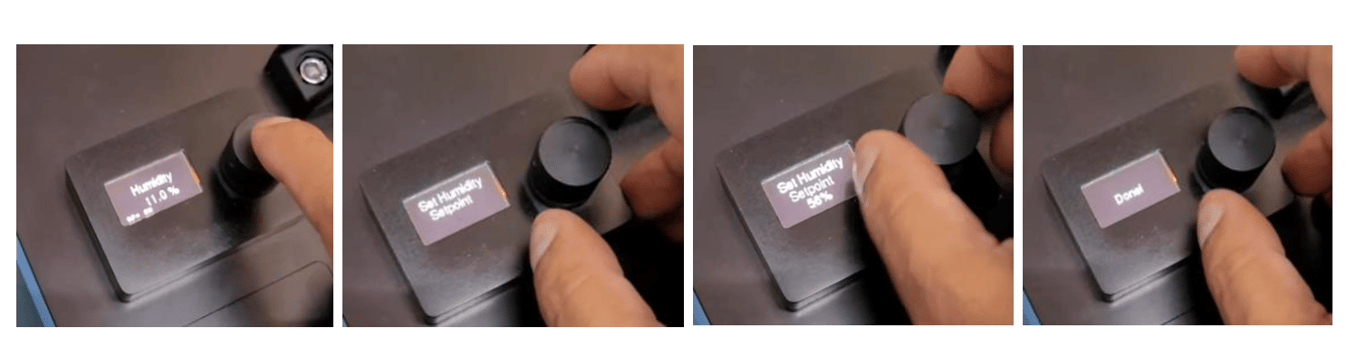

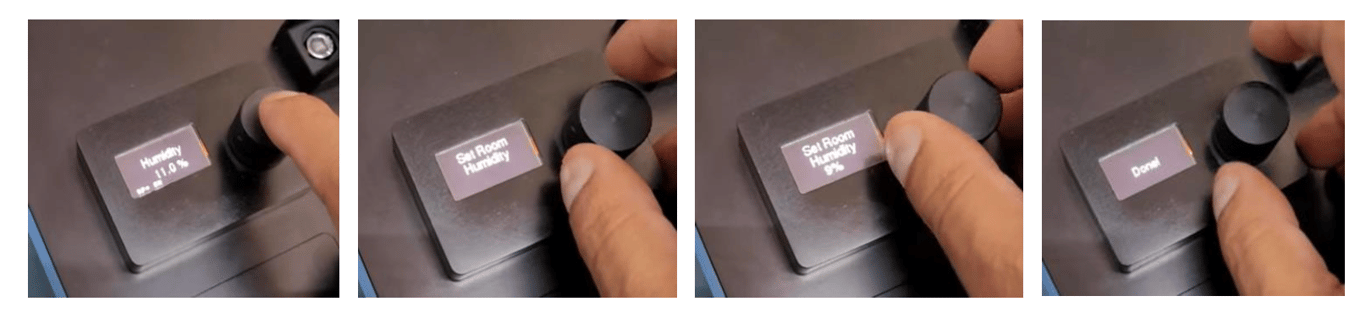

Press the knob for 2Sec - “Set Room Humidity” -Press the knob - Rotate the knob to set room %RH value
Press the knob - “Done”
Set required humidity
Press the knob for 2Sec - “Set Humidity set point”- Press the knob - Rotate the knob to set required %RH value - Press the knob -“Done”

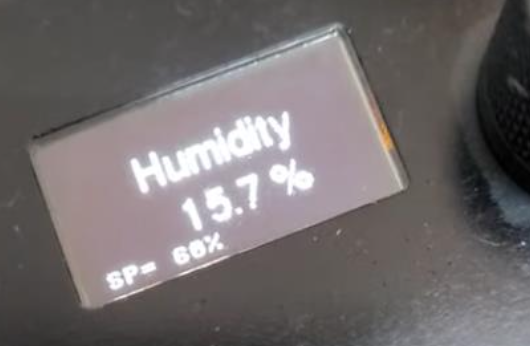

Running screen shows “Current Humidity” and Set Point of humidity “SP”
Our System facilitates data transfer from our humidity generators to software, ensuring efficient monitoring and management of environmental conditions. Through our integrated system, real-time data collected by the humidity generator is securely transmitted to our proprietary software platform.
Maintenance
Cleaning and Maintenance
- Regularly clean and disinfect the humidifier according to the manufacturer's
instructions.
- Empty and refill the water tank if required to prevent the growth of bacteria and
mold.
- Replace the desiccants as recommended by the manufacturer to maintain
optimal performance and air quality.
Replacement of desiccant in humidifier
Replacing the desiccant in a humidifier is a maintenance task that helps ensure the
efficient operation of the device. Here molecular sieve is used as desiccant. Here's a
general guide on how to replace the desiccant.
efficient operation of the device. Here molecular sieve is used as desiccant. Here's a
general guide on how to replace the desiccant.
- Turn off and unplug the humidifier
- You'll need the replacement desiccant recommended by the manufacturer, along with any tools required for accessing the desiccant compartment.

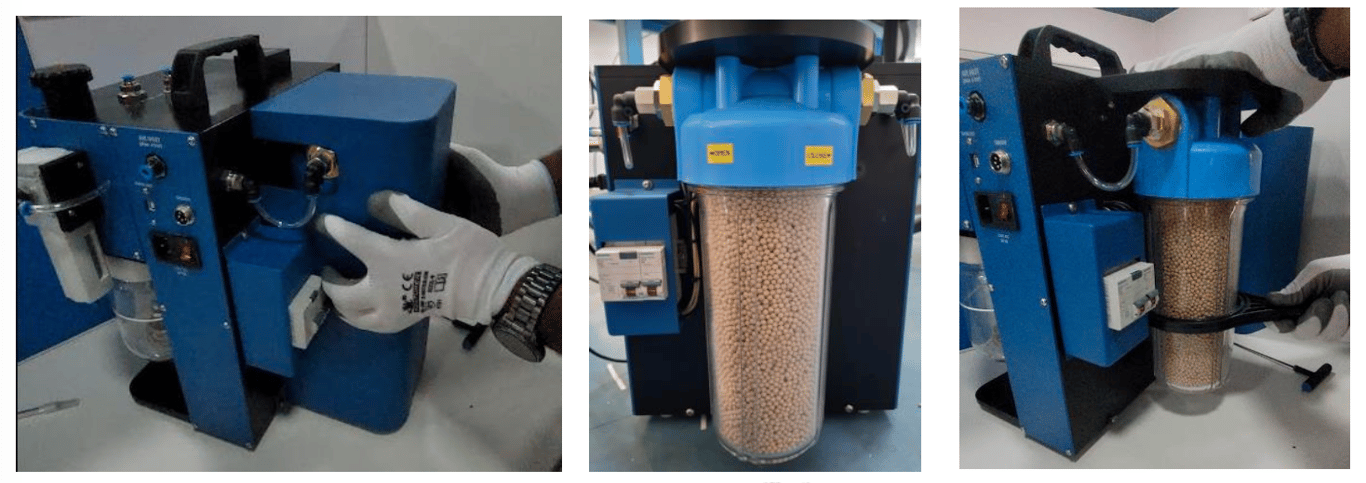

- Locate the desiccant compartment; here remove the back cover to replace the desiccant as shown below.
- Rotate the desiccant vessel clock ways for open and fill the desiccant.
Water replacement

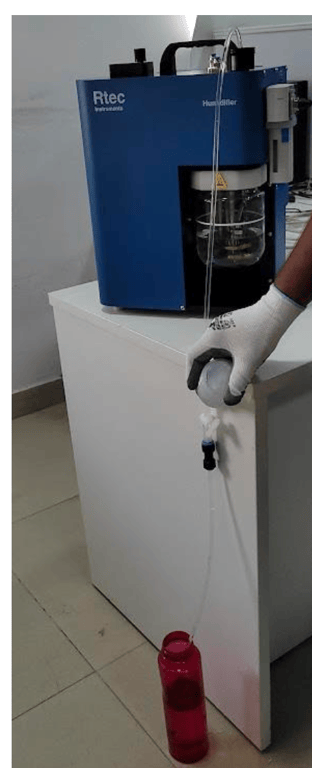

Provided Siphon manual pump to remove water from Glass jar whenever needed as shown
below, keep the humidifier always above the water collecting bottle as shown.
below, keep the humidifier always above the water collecting bottle as shown.
Desiccants regeneration

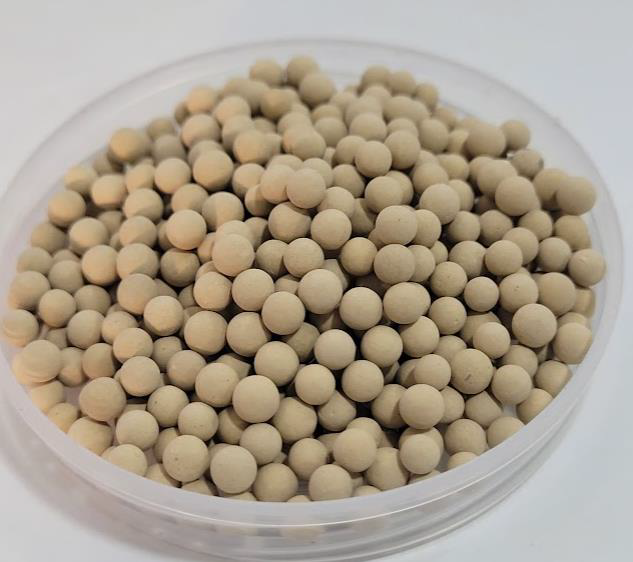

The desiccant molecular sieves regenerated by heating them inside an oven to a temperature of 175 0C for duration of 2 to 3 hrs. Allow them to cool down inside the oven without exposing to room humidity. This drives off the absorbed moisture, leaving the desiccant material ready for reuse.
