This page below is organized and dynamicaly rendered so you can edit the manual based on the customer installation flow.
Sending this local html to the customer
(until manual software implementation)
- You can download this manual page with script implementation ready for the customer.
- You can restrict content access based on the instrument and modules they purchased.
- They will be prompted to select their configuration the first time ,enabling personalized setup workflow
They can still change their configuration in the top bar.
The software manual contains every test setup for their chosen configuration.
Functions have been added so you can simply write down the condition matching a specific block of content.
The manual can be organized in a hierarchy without the customer seeing it. To do this, insert -o in a toggle heading to continue organizing with no impact for the customer.
Function Summary
Any toggle heading can be dynamically hidden by default and shown only when a condition matches [mft5]
This list will appear only when the user selected the MFT-5000 tester.
Any toggle heading with this tag - will render the flat content -
This is usefull when you need to organize the structure without the customer having to to see it
Ex: I only want to show this content for the Voicoil module [vcoil]-
The "none" condition you see here tells the code to hide this callout.
For now, I recommend using the toggle heading condition—it's less risky for content debugging unless you're checking the rendering directly online.
Local Complete Installation Manual: Combined and Personalized Customer Flow
Module-Instrument Restriction
Module-Instrument Restriction
Internal
General Internal Manual01_Tester Frame and Control System02_Load Cells03_External Modules04_Modules05_Testing Types Presentation04_Temperature Modules05_Scratch Indentation06_Liquid Container, Circulation and Various Related Options07_Environmental Modules08_Holders09_Imaging10_Advanced Sensors11_Consumables12_Control System and Software
Feature request
- Sensor Name:
- Cannot be modified, determined by Type Name (Components / ComponentOptions)
- Feature request ⇒ Make it impossible to modify.
- Unit Range:
- Sensor calibration value
- Alarm Value (Default=Sensor Basic Range):
- Value at which the test will stop automatically if reached
- Maximum force input = 90% alarm Value
- Feature request ⇒ Move it to advanced parameters
- Warning Value:
- What does it do?
- Feature request ⇒ Remove it if alarm value is sufficient
- Last Calibration Date:
- Automatically updated when the calibration is performed using “Calibrate” in MFT.
- “Calibrate” is only available for Fx and Fz.
- Feature request ⇒ Add calibrate for every sensor / Move it to Advanced
- Display Name:
- What does it do?
Advanced Parameters:
- Sensor Path:
- Cannot be modified
- Feature request ⇒ Make it impossible to modify.
- Units:
- Unit written with the sensor name and in the results.
- Voltage Range:
- Voltage Range of the sensor (0/10V by default)
- Unit Offset:
- Default bias of the sensor. Easiest method is to bias it in the run tab, go to config and save the created bias.
- Precision:
- What does it do?
- Max Offset (Default=Sensor Basic Range):
- Max allowed offset (bias) in the software.
Multi-Functional Tribometers
The versatile and modular MFT series tribometers provide precise friction, wear, and mechanical property testing on a single platform. With integrated 3D profilometry, they deliver reliable results across academic, industrial, and government applications.
Feature Comparison

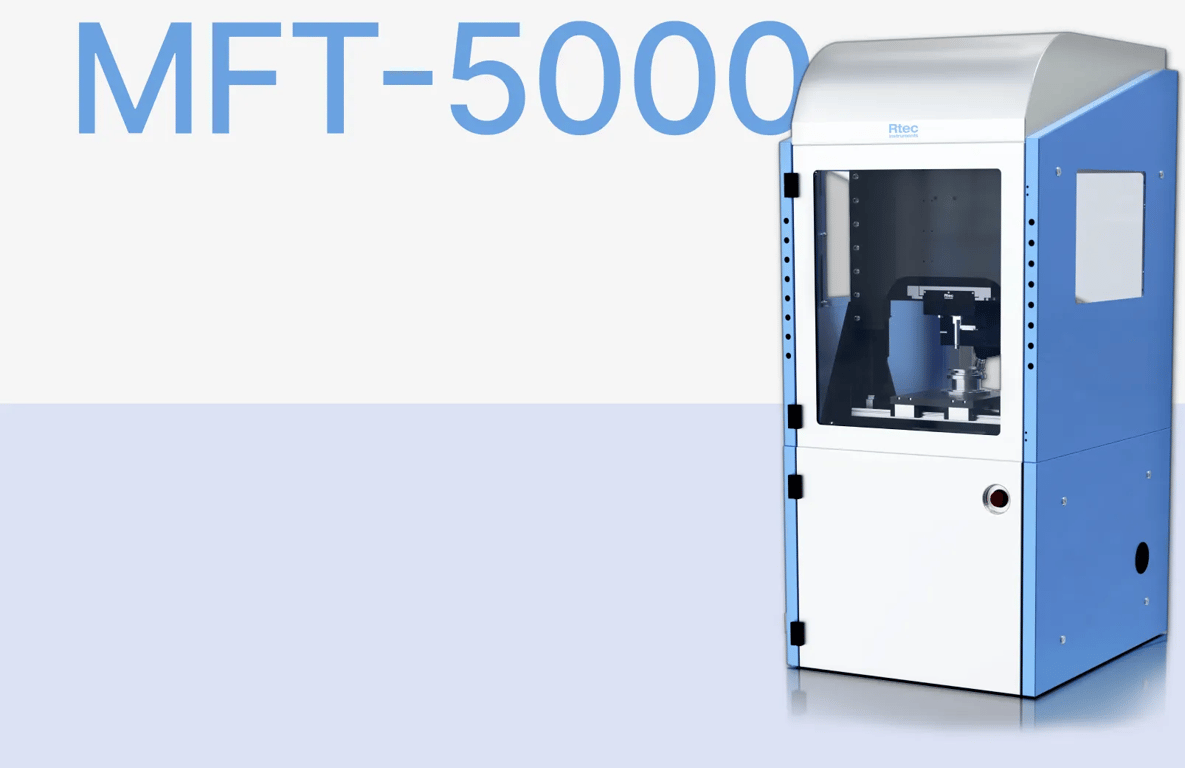

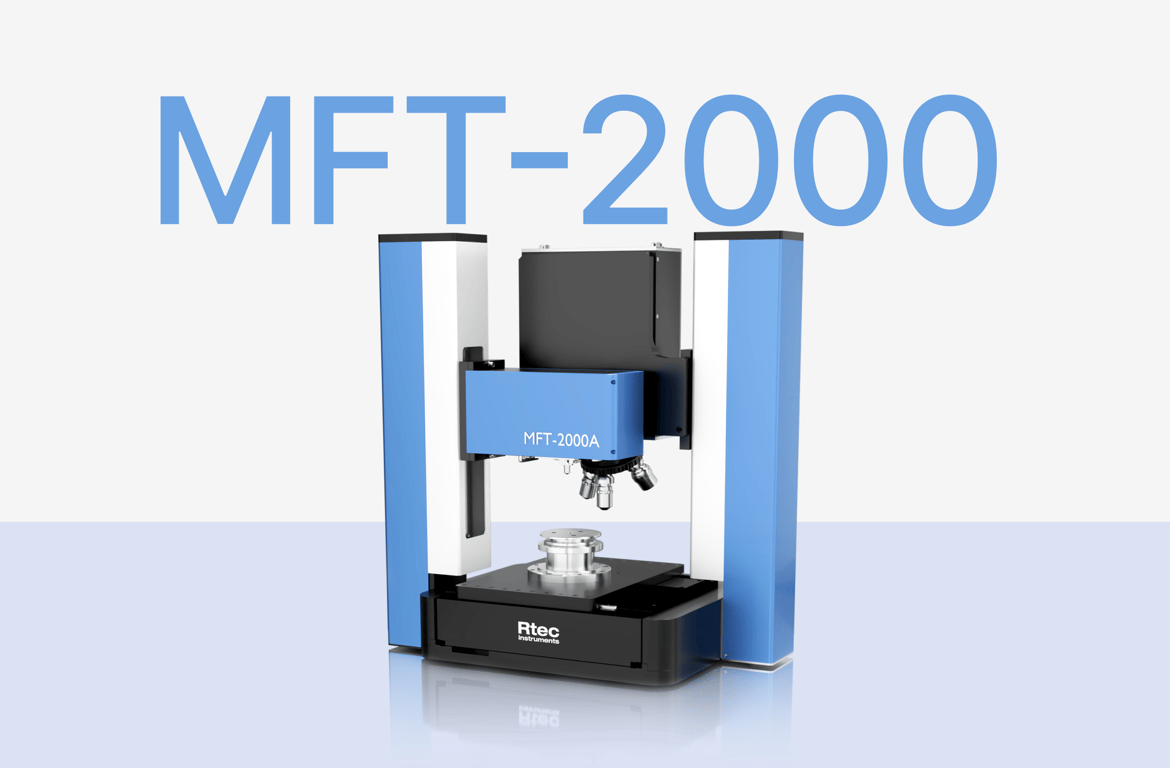

Module | MFT-5000Max Load: 10kN | MFT-2000Max Load: 200N | MFT-2000AMax Load: 200N |
Rotary | ✅ | ✅ | ✅ |
Reciprocating | ✅ | ✅ | ✅ |
Block-On-Ring | ✅ | ✅ | ✅ |
MTM | ✅ | ✅ | ✅ |
Fretting | ✅ | ❌ | ❌ |
SRV | ✅ | ❌ | ❌ |
Scratch | ✅ | ✅ | ✅ |
Micro Indentation | ✅ | ✅ | ✅ |
Nano Indentation | ❌ | ❌ | ❌ |
3D Imaging | ✅ | ❌ | ✅ |
4Ball | ✅ | ❌ | ❌ |
Tapping Torque | ❌ | ❌ | ❌ |
Vacuum | ❌ | ❌ | ❌ |
Twin/TriRoller | ❌ | ❌ | ❌ |
