Tester’s Technical Information

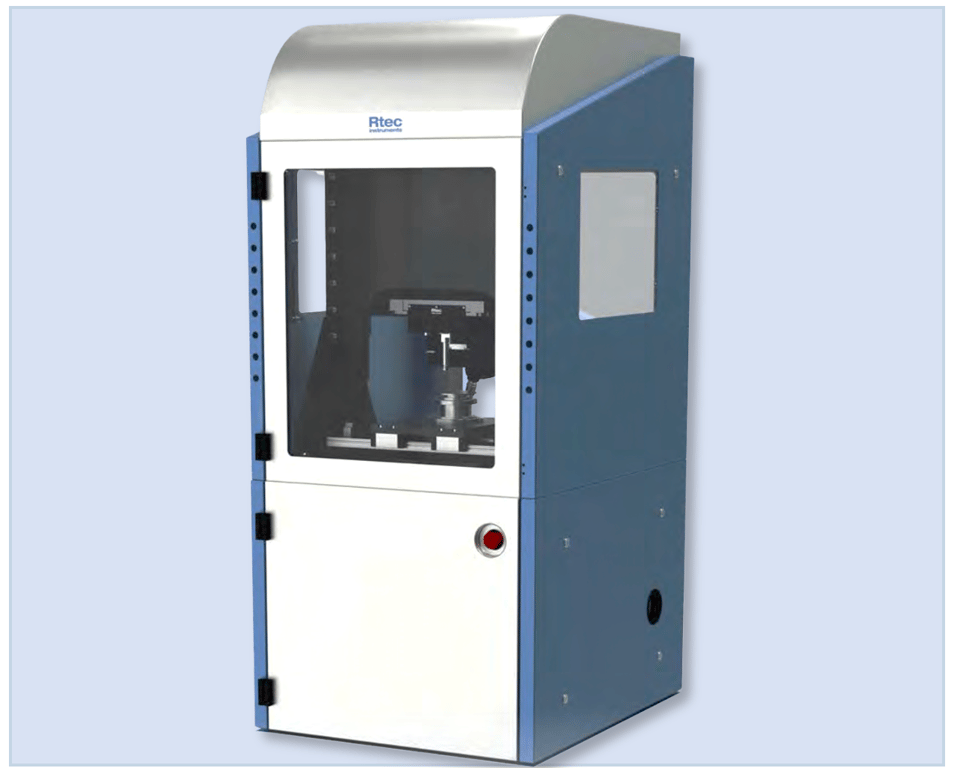

MFT-5000 Overview
High density/high stiffness floor standing platform with anchor design.
Capable of performing various standard and customized tests according to international standards (ASTM/DIN/ISO).
Accommodates interchangeable modules for easy change of test configuration. Options for Integrating 3D optical surface profilometer, Raman etc.
Capable of performing various standard and customized tests according to international standards (ASTM/DIN/ISO).
Accommodates interchangeable modules for easy change of test configuration. Options for Integrating 3D optical surface profilometer, Raman etc.
The MFT-5000 is based on the principle of modules. We divide the modules into different types:

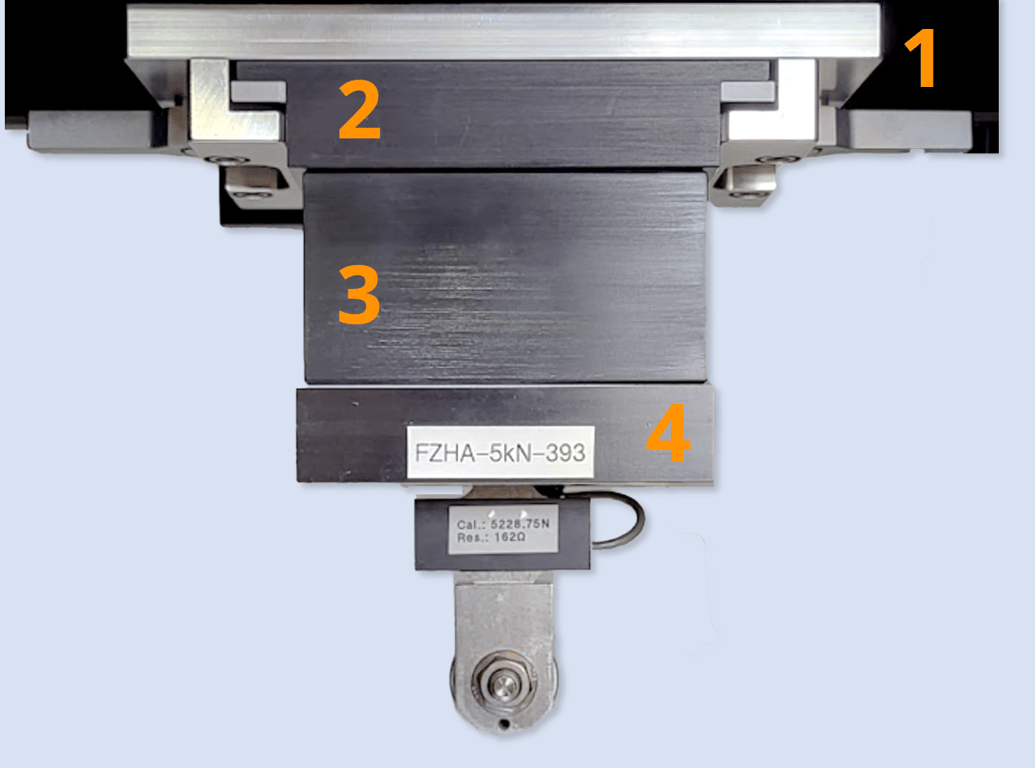

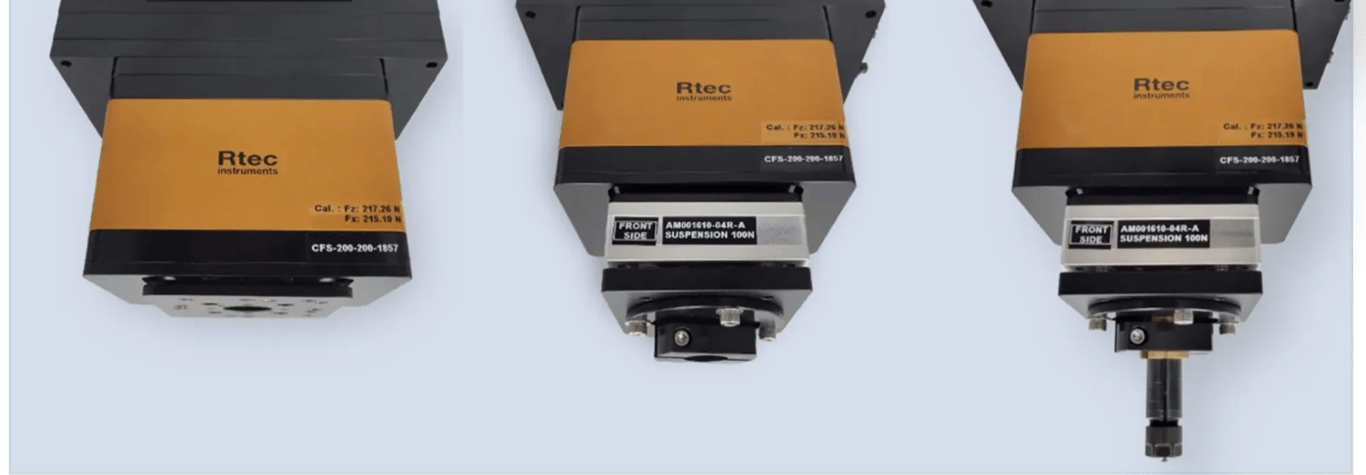

- The Load Cells: It applies the load and reads the friction force, which can, in turn give us the friction coefficient.
- The Functional Modules: Also called drives, have a motor that applies a movement to a sample. This movement is necessary for friction testing.
- The Sensors: They give information relevant to the test: temperature,displacement, and conductivity.
MFT-5000 Technical Specification
- Max. loading force up to 10000 N
- Z travel distance up to 150 mm, encoder resolution: 0.1 um
Servo-controlled loading, fully programmable
Travel Speed: 0.002-5 mm/s
In-situ wear-depth monitoring
- Off center loads up to 5000 N (rotary drive etc.)
- Long X-Y motorized sample stage travel. Medium and low speed linear reciprocating motion.
MFT-5000 Dimensions
Its weight varies based on the options installed and starts at around 295 kg. The optional vent port for external ventilation from the top of the tester has dimensions of 12.7cm (5”).
- frame of instrument
- X&Y motorized stage : 130 mm x 270 mm
- Z-motorized stage: 150 mm
- Z2-motorized stage: 150 mm (optional)
X&Y motorized Stage Overview
Outer enclosure, EMO switch, exhaust fan
Automatic recognition of installed modules and drives.
Automatic recognition of installed modules and drives.
The base plate is a platform equipped with two X-Y motorized stage allowing it to move horizontally. The Z-motorized stage allows to apply the normal force, Fz, with the instrument.
The two X-Y motorized stage, i.e displacement tables, are controlled by different modes:
The two X-Y motorized stage, i.e displacement tables, are controlled by different modes:
- joystick, software with positioning control or video image with the optional optical microscope.
- The X-Y motorized stage is setup at a low speed for safety reasons. But careful and attention must be taken when operating the instrument.
The X-Y motorized stage have been set at low speed (5 mm/sec) on the standard instrument (other speeds: maximum speed 50 mm/sec on special request only).
The stage is moving laterally at a low speed for safety reasons.
The stage is moving laterally at a low speed for safety reasons.
Watch out getting your fingers or any personal stuff stuck while the base plate is moving.
X&Y motorized Specification
- X Linear Reciprocating Drive : Speed 0.001-6 mm/s; max travel: 130 mm
- Y Linear Reciprocating Drive : Speed 0.001-50 mm/s, max travel: 270mm
(Y motor changed to higher torque motor with maximum 6 mm/s speed when some high torque test modules are selected)
XY Stage Speed or Torque Variation
SPN010021 | XY Stage Speed Change | Replaces default XY stage motor - X 6mm/s and Y 50mms speed with selected motors in this section. X 10 mm/s, Y 50 mm/ |
ㅤ | ㅤ | ㅤ |
Tester’s Plate
The serial number and manufacturing dates are located on the front of the machine,
behind the door:
behind the door:
Thermo-controller
DAQ Box and Analog Input
Safety
Risks
Foreseeable misuse
Misuse can result in serious injury and damage to the tool. Foreseeable misuse includes, for example:
- Any use of the tool other than that for which it is intended or any use other than that for which it is intended.
- Operating the tool in non-compliant and potentially explosive environments.
- Operating the tool without the intended safety devices or with defective safety devices.
- Modifying or disabling the safety devices.
- Programming the machine with values out of the specified range.
- Failure to observe the operating instructions.
- Installing software that is not approved by the tool manufacturer.
- Carrying out maintenance work on an unsecured tool.
- Placing objects on work surfaces.
- The installation of spare parts and the use of accessories and equipment that are not approved by the manufacturer.
Making structural changes to the tool without the consent of the tool manufacturer and subsequent risk assessment.
- Failure to observe the maintenance instructions.
- Failure to observe signs of wear and damage.
- Service work performed by untrained or unauthorized personnel.
- Deliberate, unintentional, or reckless handling of the tool during operation.
- Operation of the tool in an obviously faulty condition.
- The use of external energy sources that are not approved by the tool manufacturer.
Permissible Aids and Operating Materials
The following auxiliary and operating materials may be used on the tool:
- Isopropanol
- Latex gloves
The recommended cleaning agent is isopropanol. Isopropanol is a flammable solvent and
must be used in compliance with the safety data sheet. Restrictions may apply in relation
to environmental regulations concerning the total quantity of permissible solvents.
Suitable precautionary measures must be taken in the storage, usage, and disposal of these chemicals, which should be treated as hazardous substances.
must be used in compliance with the safety data sheet. Restrictions may apply in relation
to environmental regulations concerning the total quantity of permissible solvents.
Suitable precautionary measures must be taken in the storage, usage, and disposal of these chemicals, which should be treated as hazardous substances.
Ensure that repairs are carried out in a timely manner.
- All work on live parts of the electrical installation must only be carried out when the tool is de-energized.
- Only allow protective covers on the tool or tool parts to be opened by qualified electricians, when the tool is de-energized.
The machine can be switched OFF by operating the ON/OFF switch on the back of the machine.
Note: Before accessing any electrical box, please make sure to follow LOCKOUT protocol as mentioned in maintenance manual.
Danger from Heavy Loads
The weight of the tool and some tool components exceeds the permissible load capacity for one person.
- Two people are required to transport the UP-3000 unit.
- Mechanical assistance (e.g. a forklift) can be of use to move the machine.
In the event that the machine needs to be displaced from the place of installation, contact Customer Service.
Emergency Switch (EMO)
To stop the equipment in an emergency situation, press the emergency stop button.
Figure 5: Image of the EMO button
Once the emergency stop button has been activated, the equipment cannot be restarted until the emergency stop button has been released. This is done by twisting the knob to the operational position.
Warning: Please make sure that the reason for EMO activation is resolved before releasing the emergency stop button.
Temperature Controller Switch
The Temperature Controller is located in the lower part of the MFT-5000 platform, on the left side of the tester. The GFCI switch trip is located at the back of the Temperature Controller. This switch turns on or off the Temperature Controller.
Figure 6: Image of the switch at the back of the temperature controller
Warning: In the event that the temperature controller box is trip/faulted (GFCI switch), please contact Rtec-Instruments Support service before trying the chamber
again.
Note: In the event that the temperature controller box has to be opened, follow the LOCKOUT protocol as mentioned in the maintenance part of this manual.
Protective Equipment
Protective equipment increases the level of safety and protects Operators from potential health risks. The Operators must wear protective equipment when performing work on or with the tool. The tool Operator must have the following protective equipment at their disposal:
Safety Goggles – Not Mandatory
Safety goggles protect the eyes from flying debris, splashes of media, and lasers. Corrective safety goggles must be adapted to the wearer's visual impairments. Safety goggles are not mandatory, as the machine can be operated solely when the chamber is closed.
Safety Gloves
Media-resistant protective gloves protect hands against aggressive media, mechanical, and thermal hazards. Their use depends on the application requirements.
Respiratory Protection – Not Mandatory
Respiratory masks have particle filters or gas filters and protect Operators from inhaling dangerous substances. Combination filters consist of a gas and particle filter. Its use is not mandatory, as it depends on the materials being tested.
Safety Shoes – Not Mandatory
Safety shoes protect the front part of the feet with a protective metal cap and a puncture- resistant and skid-proof sole made of antistatic, acid-resistant, and oil-resistant material. Their use is not mandatory but according to local regulations.
Responsibility of the Tool Operator
The tool is used in the commercial sector. Therefore, the operator is subject to the local statutory obligations for occupational safety. In addition to the safety instructions in these operating instructions, the operator must comply with the safety, accident prevention and environmental protection regulations applicable for the field of use of the tool. Ensure the following points:
The responsible employees obtain information on the applicable occupational, health,and safety regulations and prepare a risk assessment to determine additional hazards resulting from the specific working conditions at the tool's place of use. These assessments must be implemented in the form of operating instructions.
Do not allow any changes or modifications without the written consent of RTEC Instruments Inc.
- Replace defective components and worn parts of the tool immediately with original spare parts.
- Do not allow the operation of the tool without covers or with locks disabled.
- Maintenance and repair work may only be carried out by qualified personnel.
- Ensure that all employees who handle the tool have access to the operating instructions provided and other applicable documents at all times. Furthermore, ensure that the instructions contained therein are consistently followed.
- Ensure all employees who handle the tool are adequately trained for its operation, according to specifications from RTEC Instruments Inc.
- Do not remove, alter, or obscure warning signs located on or within the tool, or in any way change their content or legibility.
- Do not attach additional signs or make other additions or modifications that detract from the observance of warning signs or plaques placed by RTEC Instruments Inc.
Other Electrical Risks
- Work on electrical tools, components, and electrical connections of the tool may only be carried out by qualified electricians.
- If an electrical problem occurs, turn off the tool and call a qualified electrician immediately.
- When the isolation is damaged, interrupt the power supply.
Other Mechanical Risks
- Mechanical risks are identified on the tool by means of safety labels in the close proximity to the point of hazard.
- The tool has moving parts (X, Y, and Z actuators) that may catch on foreign objects such as loose clothing, accessories, fingers, hands, and hair.
- Do not reach towards moving parts of the tool when the tests are being carried out.
Other Thermic Risks
Optional items of the instrument include high-temperature chambers. The heating system is protected inside the chamber and the external black part of the chamber is kept at a low temperature. But in reason of heating, safety measures must be maintained.
Warning: Do not put your hands on the heating chamber while heating the chamber or chamber is still hot inside.
Note: When the heating is stopped, keep hardware and software of instrument opened in order to maintain the cooling fans blowing air for better and faster cooling.
Other Risks
- Risk of death due to faulty or dismantled safety devices.
- Severe injuries or death due to individual tool components tipping, sliding, or falling during improper transportation.
- Danger of death by electrocution.
- Risk of crushing, impact, and shock due to falling tools, tool components, and assembly equipment.
- Health hazards due to the improper handling of auxiliary and operating materials (e.g. cleaning agents).
- Risk of collision with tool components.
- Unforeseeable injuries and property damage due to moving parts within the tool.
Failure to observe the hazards may result in serious injury, including death, or pose other health risks.
Risk Assessment Analysis
The Risk Assessment Analysis has been performed in the CE Mark safety and code
conformity report for the Multifunction Tribometer Report #2019-0535 CE Mark. The details
of the report indicates the full Risk Assessment Analysis.
In case of needs of this document, please consult Rtec-Instruments for a copy of the
document.
As an easy indication of information, some basics of the operating of the instruments are
indicated here and provide an easy overview of the steps to be cautious.
conformity report for the Multifunction Tribometer Report #2019-0535 CE Mark. The details
of the report indicates the full Risk Assessment Analysis.
In case of needs of this document, please consult Rtec-Instruments for a copy of the
document.
As an easy indication of information, some basics of the operating of the instruments are
indicated here and provide an easy overview of the steps to be cautious.

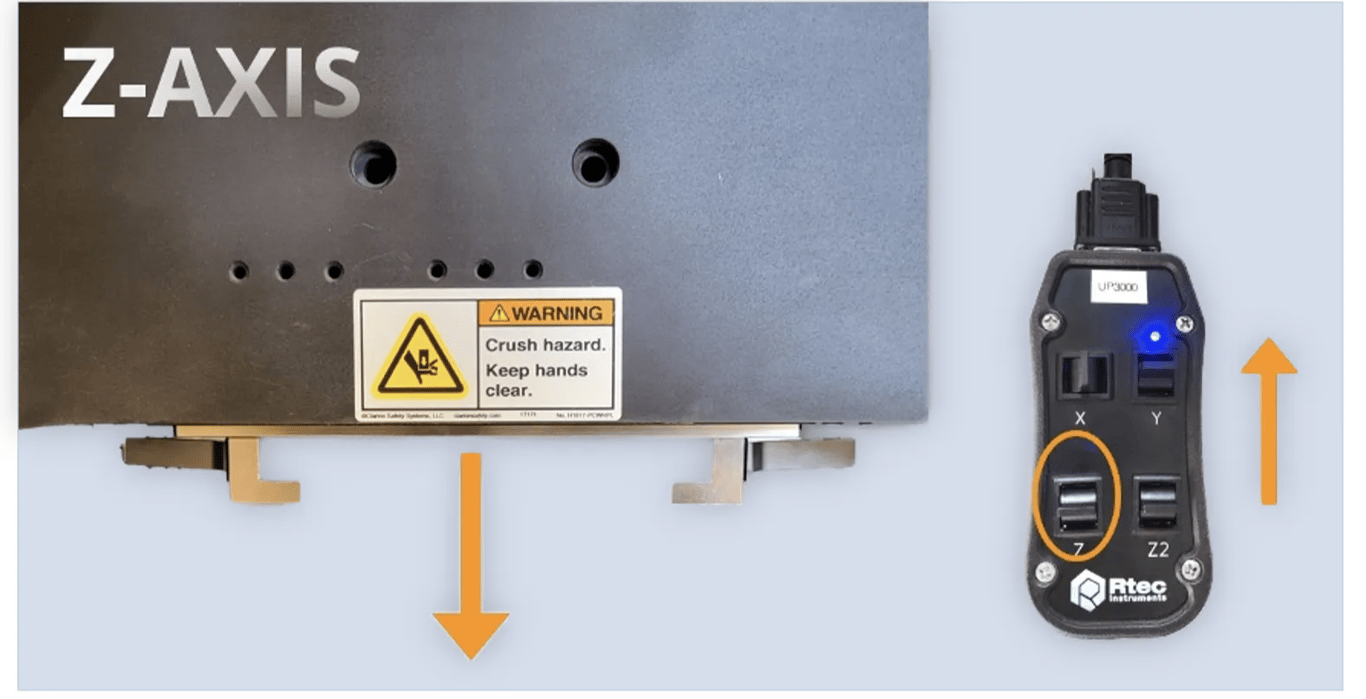

- Collision with X,Y,Z-motorized tables
X,Y,Z-motorized tables are setup at low speed for safety reasons but precaution must be
taken when the system is operated.
- Collision of the upper sample holder with lower stage
The MFT software has safety features to stop the displacement when the maximum load has
been reached.
The joystick allows to operate the X,Y,Z-motion when the software is closed, In that particular
case, the safety of the maximum load of the load cell is not active. Position of the Z-motion
must be watched.
- Collision with the 3D Profilometer
The optical objectives must be maintained at a higher position than the sample surface.

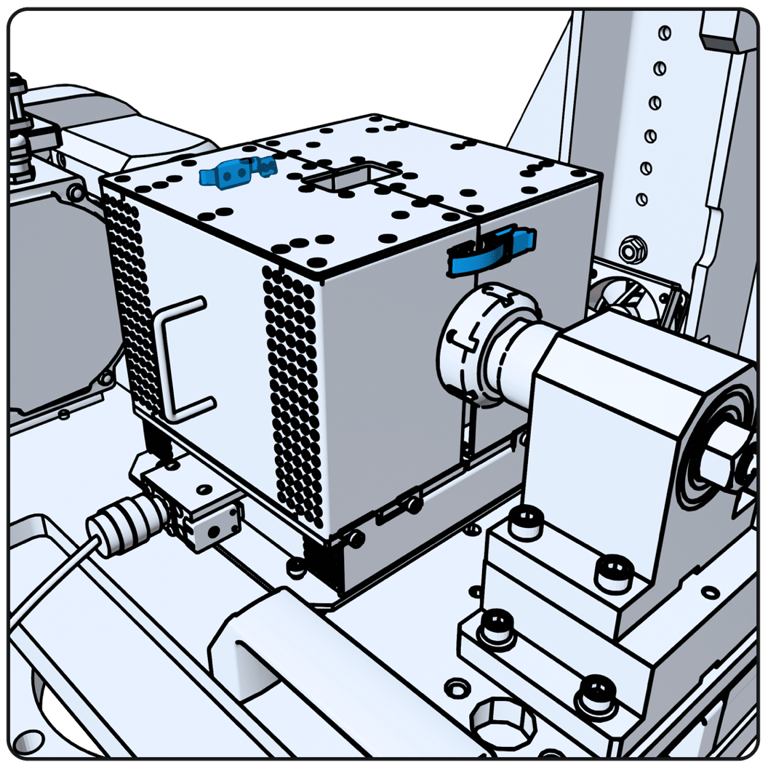

- Heating chamber
Optional items of the instrument include high temperature chambers. The heating system is
protected inside the chamber and the external black part of the chamber is kept at a low
temperature. But in reason of heating, safety measures must be maintained.
Do not put your hands on the heating chamber while heating the chamber or chamber
is still hot inside.
When the heating is stopped, keep hardware and software of instrument opened in
order to maintain the cooling fans blowing air for better and faster cooling.
The external parts of the heating chamber are maintained at a low temperature but caution
must be taken when touching the heating chambers.
Commissioning & Installation
Unpacking the main unit
- Cut the straps, keep in mind that the straps may have sharp edges.
- Unscrew screws (3), fixing the side and the rear walls of the crate to the
bottom.
- Open the latches (4) by turning the handles (5)
- Open the front wall of the crate and put it down in order to make a ramp. (6)
Remove the three foamsafety bumps held by Velcro patches.
- Take off the bottom platform from the rest of the body (7) and move it back.
Cut and remove the metallized mylar bag and plastic wrap.
Be careful not to scratch the outer housing of the tribometer.
- Unscrew the screws (8) and remove the fixing brackets (9).
- Unscrew the nuts (10) in order to move it all the way down until it touches down the base part (11). The tribometer shall lower down and stay on the casters
- Carefully roll the tribometer down the ramp while supporting it and move the
system to the installation location.
After unpacking the unit, check it for compliance and for any damages that may have occurred during shipment.
- Place the pads (12) under the 4 feet prior to the position, to reduce the vibration.
- When on the final installation location, screw nuts (10) all the way up in order for the tribometer to be standing with its leveling feet (11) on the basement and not on the casters.

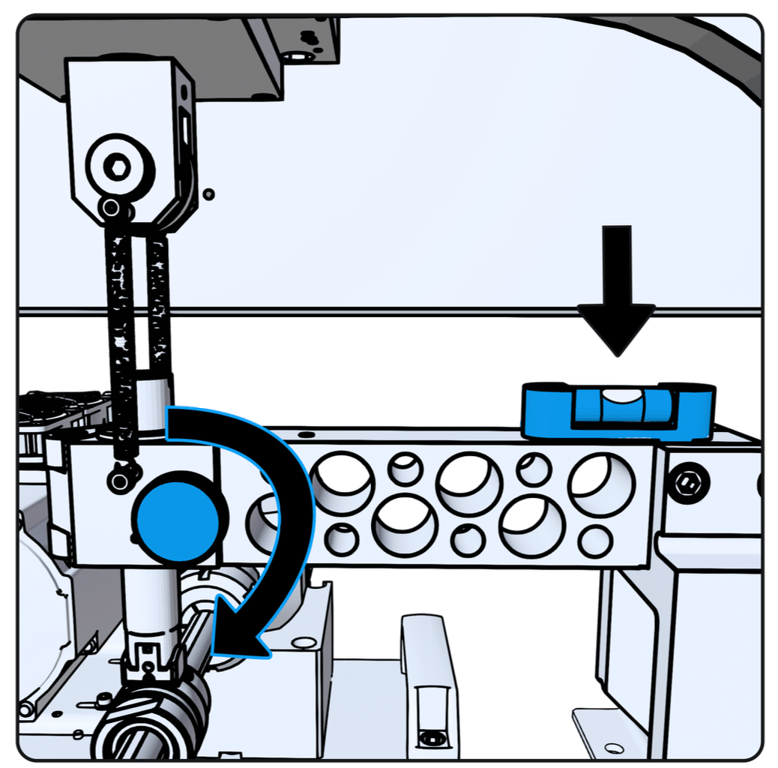

- Adjust the tribometer horizontally using the inclinometer (13) given and the nuts (10).
- Finally, screw both nuts (10) against each other in order to fix them and stop them from moving.
- Plug in the USB’s to the computer (USB cables have numbers that match the number on the computer ports).
- Connect the tool and the computer to voltage as instructed in the facility requirement document.
- Turn on the computer and power on the testers (both switches)
- Use the joy stick to manually move XYZ stages
- Press EMO button to check its operation.
- Rtec Software MFT shortcut is on the desktop of computer supplied.
Overview
This guide walks you through the installation process of the module on an Rtec-Instruments system. It includes mechanical mounting, alignment and electrical connections. Follow all safety precautions and ensure the tester is powered off before beginning.
Hardware Step-by-Step
Load Cell Installation
Low Load Argon
Required Tools and Components
Mounting the Argon Sensor on MFT-2000
- Install the load cell on the fast-exchange attachment by fastening the 4 captive screws using a 5/32" Allen wrench.
- The narrow side of the fast exchange plate’s should point to the left of the front load cell as this side will fit into the back of the sliding support.
- The front of the load cell is the face showing the Rtec logo and the unit calibration sticker.
(Optional) With Extension block:
(Optional) You can also use an extension block to reduce the distance between the load cell and the lower setup.
- Mount the block extension on the exchange plate with 4 4 x 10-32 x 1.250” long screws using 5/32 Allen wrench.
- Then the adaptor plate mounted on the extension block with 4 x 10-32 x .625” long screws using 5/32 Allen wrench.
- Install the load cell on the fast-exchange attachment by fastening the 4 captive screws using a 5/32" Allen wrench.
- The narrow side of the fast exchange plate’s should point to the left of the front load cell as this side will fit into the back of the sliding support.
- The front of the load cell is the face showing the Rtec logo and the unit calibration sticker.

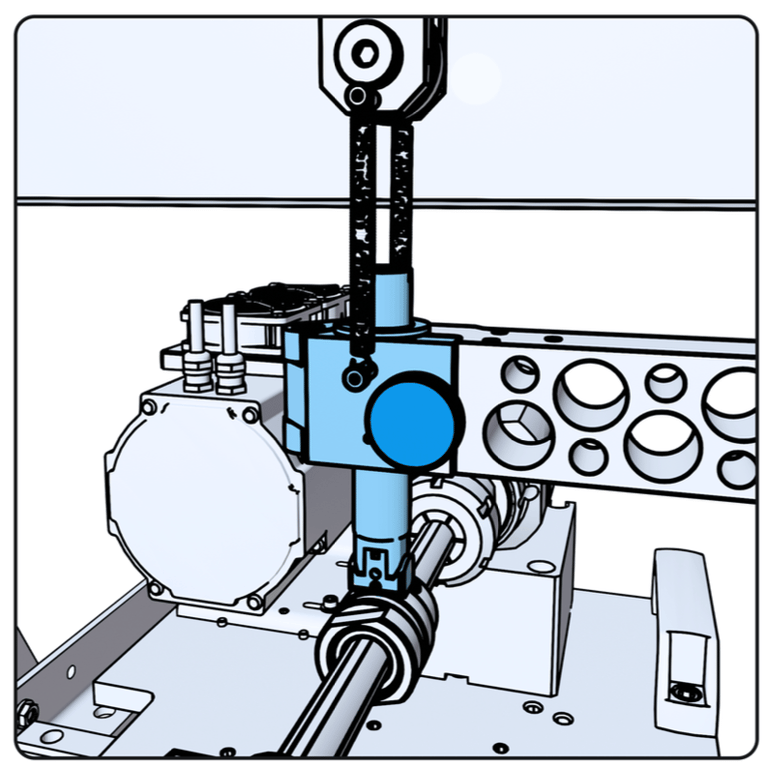

Ball holder and suspension installation

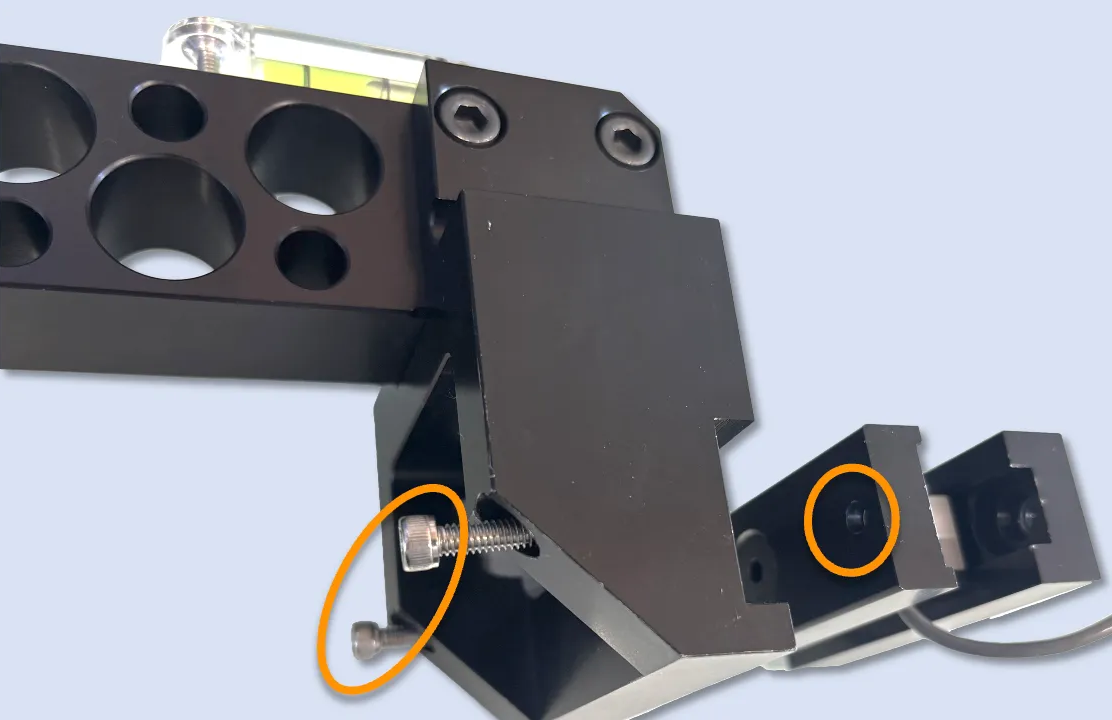

- Secure the suspension holder with the 4 screws using 5/64” Allen Key.
The labeled force represents the suspension capability, not the nominal operating force.
The suspension must operate within this specified range.
Exceeding this limit will lead to ineffective suspension operation.
Exceeding this limit will lead to ineffective suspension operation.

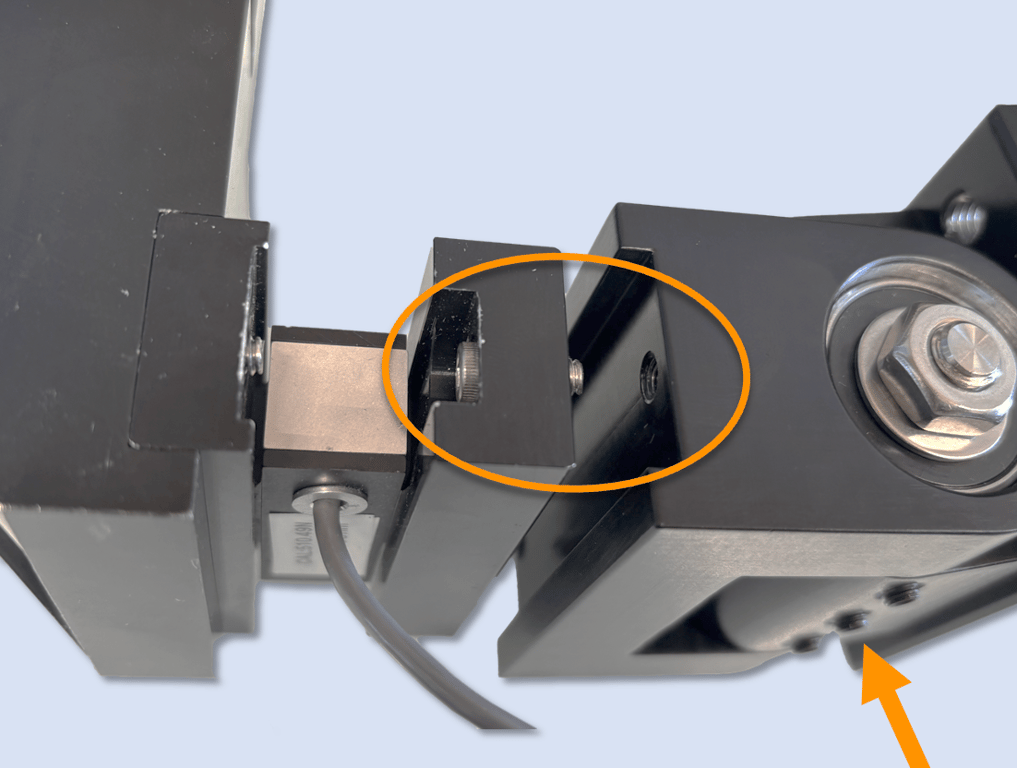

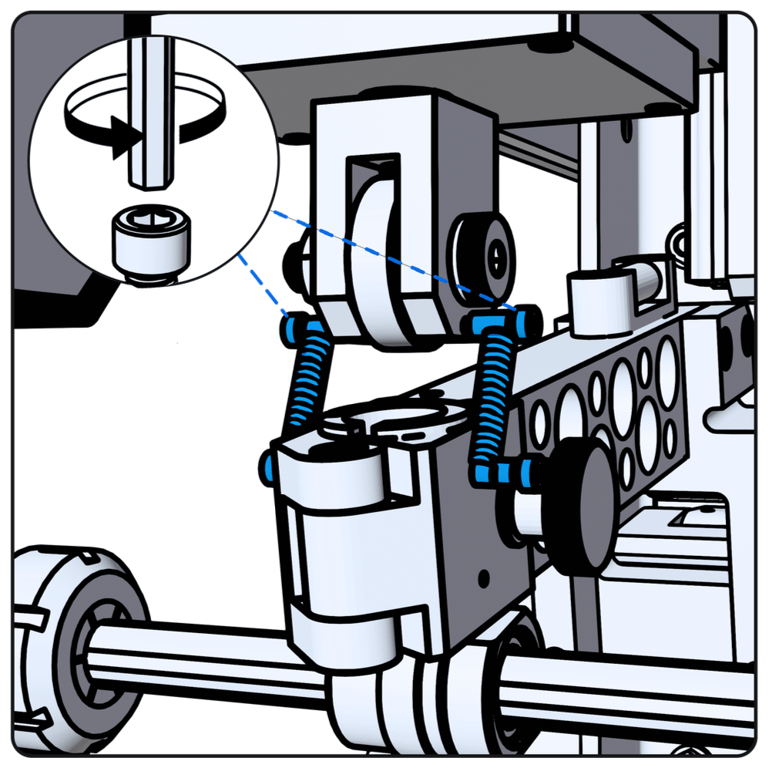

- Fix the suspension then secure it by tightening the side screw using 7/64” Allen key.
Be careful not to overload the load cell while inserting the suspension.
You can install the suspension into the holder first before installing the holder on the load cell.
Or, as shown, you may insert a thin Allen key into the clamping gap during insertion to allow the part to slide in effortlessly.

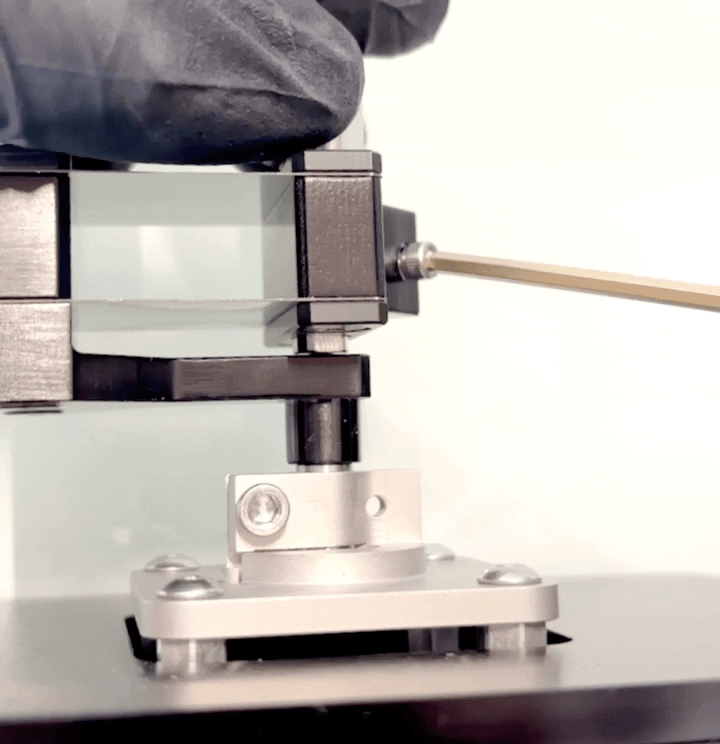

- Install or replace the ball from the ball holder, then hand-tighten the nut or using a wrench (optional).
- Secure the ball holder once slide into the suspension by tightening the side screw using 3/32” Allen key.
The ball holder must not touch the suspension base to ensure proper suspension operation.
It is possible to use a ball holder extension to reduce the Z distance to the sample in certain testing configurations.
Please contact Rtec Service for this specific matter.
Installing the Argon (MFT-2000)

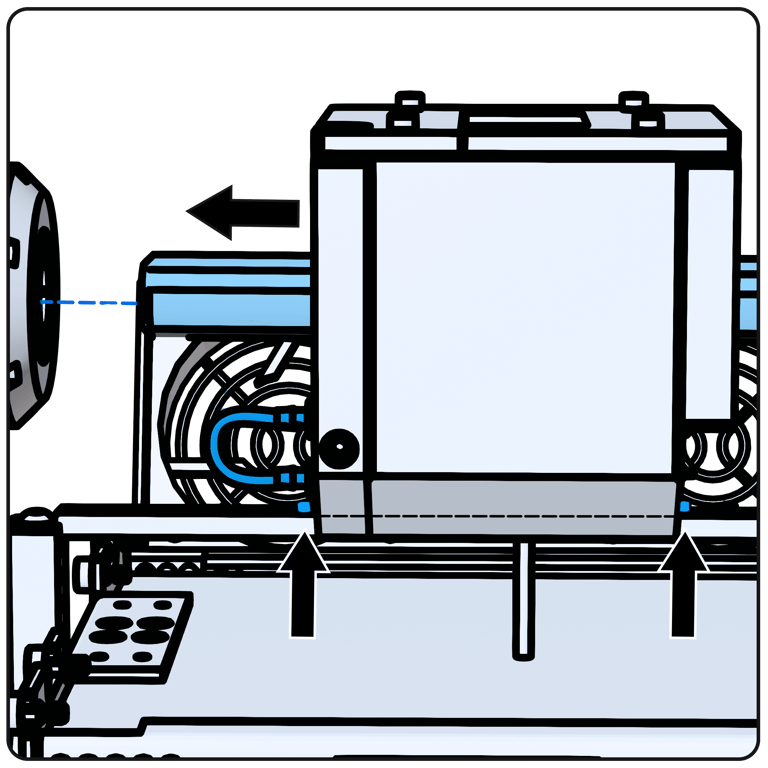

- Slide in the load cell into the Z stage rack.
Make sure the 4 screws above the rack are removed.
Slide the load cell with its front facing you and the connector on the right.
Slide the load cell with its front facing you and the connector on the right.

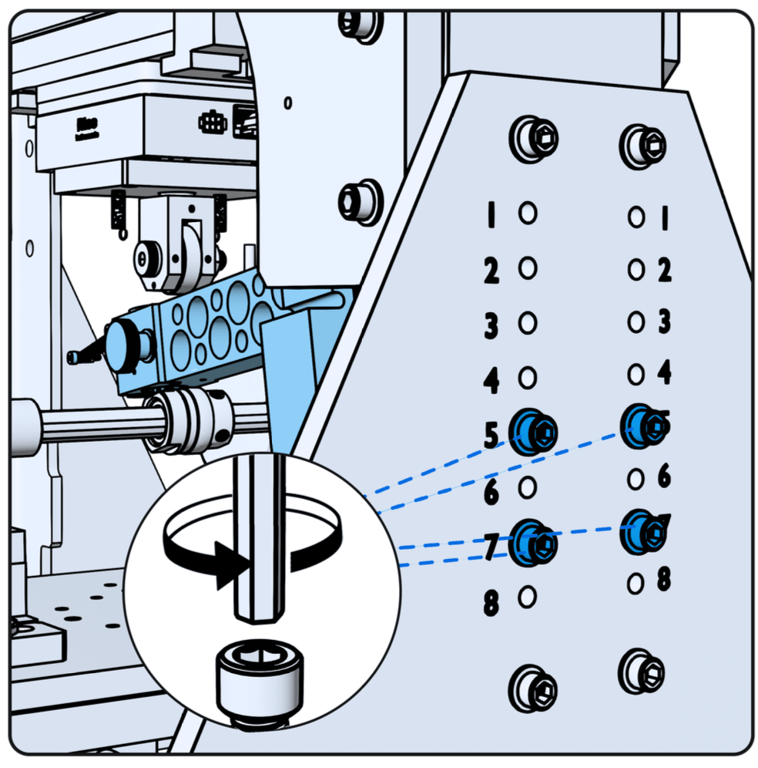

- Fasten the 4 securing screws by hands.

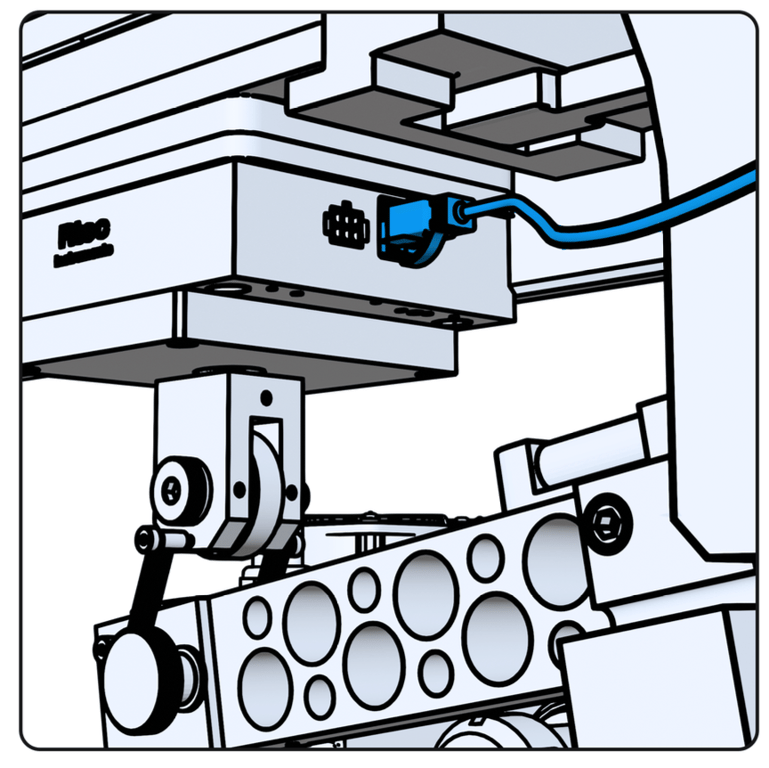

- Connect the ribbon cable. The connector only fit one way.
Medium Load Argon
Introduction
This manual applies to the following tester
MFT-5000

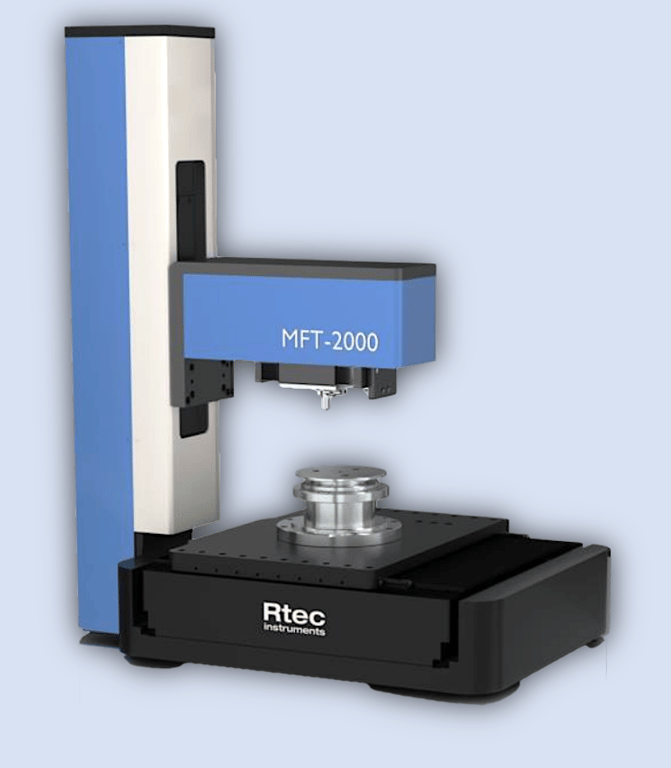

MFT-2000

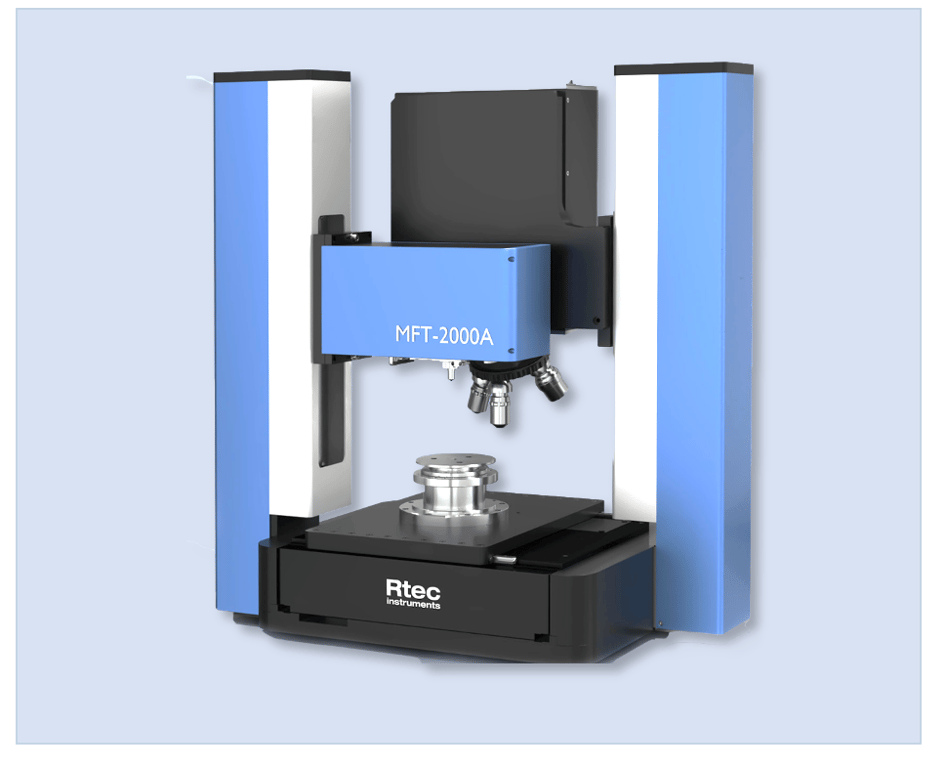

MFT-2000 A

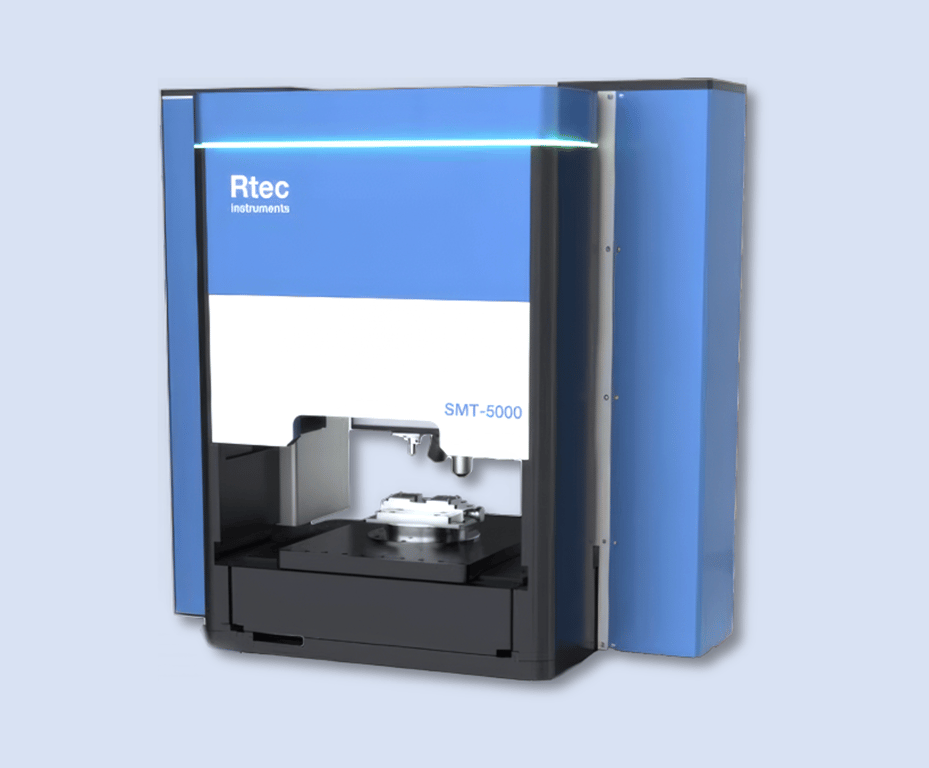

SMT-5000
This type of Load Cell is composed of a singular part, which makes it easier to use. Inside this Load Cell are two piezo sensors, one measuring Fz and the other measuring Fx.

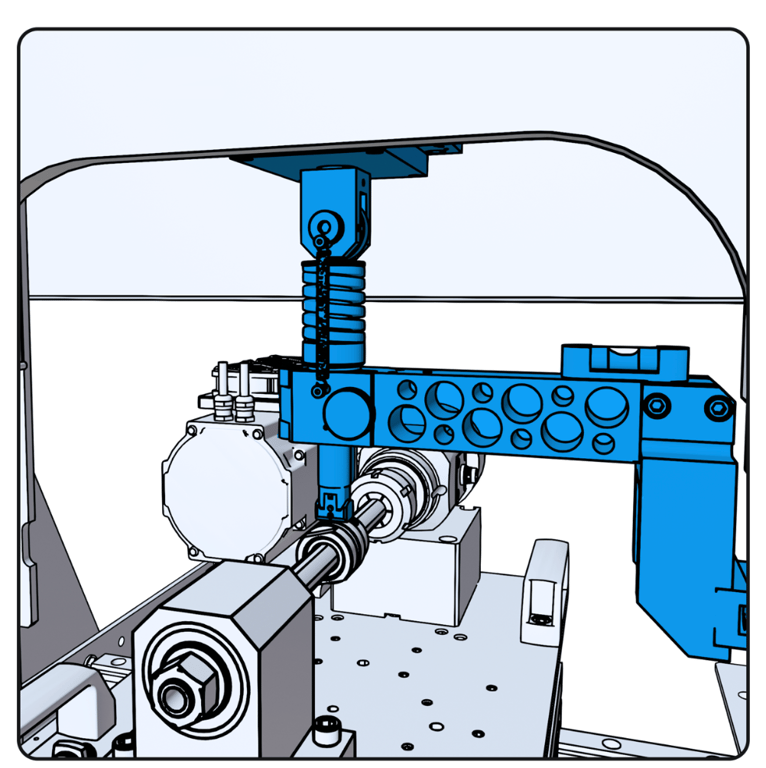

In this example of standard assembly, you can see on the front side of the 200N load cell a sticker which is the calibration unit of each axis force, fz and fx, necessary to read correct value based on those reference value.

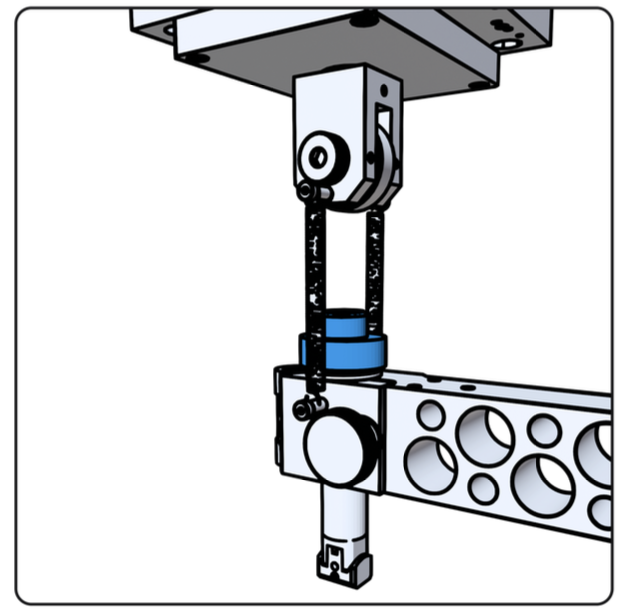

The 100N suspension assembled on it is used to limit the vibration induced by the sample during testing. There are several variations of suspensions depending on the maximum load it can be effective on.

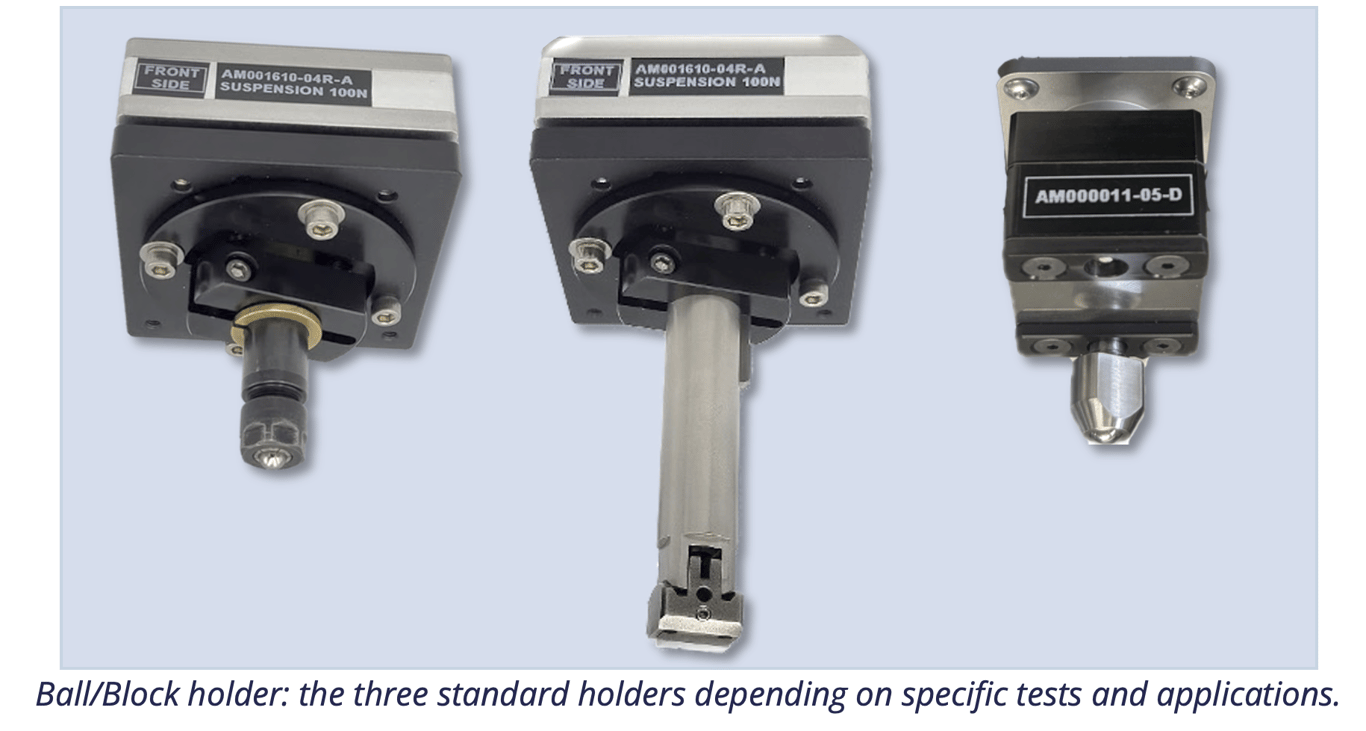

Exemple of holder into their suspensions:
Required Tools and Components
Components:
- Argon Load Cell
- Argon Adapter Plate
- Argon Quick Exchange
- Slip Sleeve
- Ball Holder Plate MM002059-00
- Ball Holder
- Optional Components:
o Extension Block
o Suspension Plate
Screws and Hardware:
- (4x) 10-32 Screws - BM310612
- (4x) 10-32 Screws - BM310320-5
SHCS 10-32 X .375" LG PLAIN 18-8 SST
- (4x) ¼ inch button head screws
- (4x) 8-32 Screws
- Allen wrenches: 5/32", 9/64”
Mounting the Argon Sensor on MFT-5000
In most cases, the Argon adapter plate will already be installed. However, if
installation is required, follow these steps:
installation is required, follow these steps:

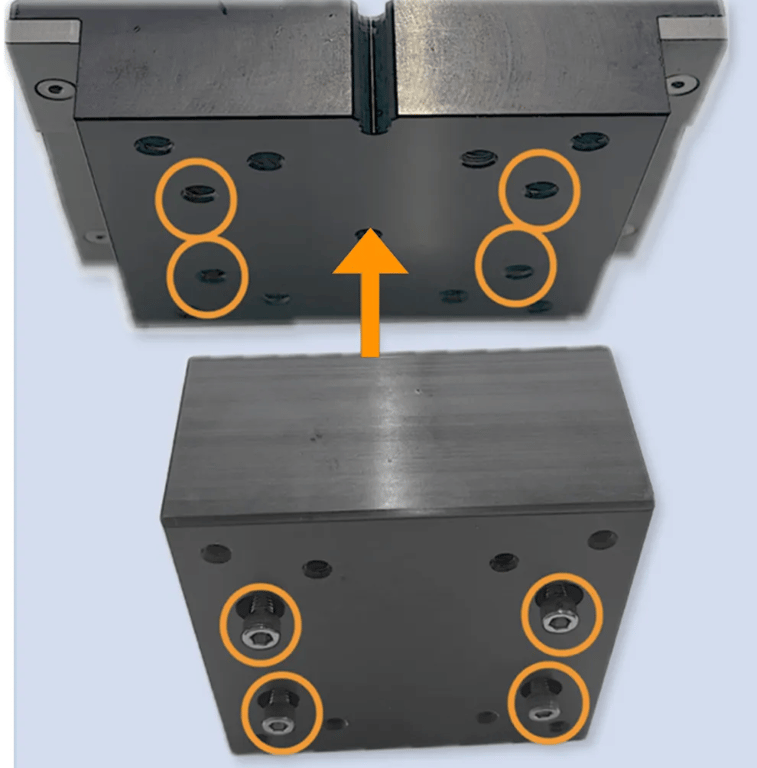

- Mount the adaptor plate plate directly to the Quick Exchange base using the provided 4 x 10-32 x 1.250” long screws using 5/32” Allen wrench.
- Mount the block extension on the exchange plate with 4 4 x 10-32 x 1.250” long screws using 5/32 Allen wrench.
- Then the adaptor plate mounted on the extension block with 4 x 10-32 x .625” long screws using 5/32 Allen wrench.
(Optional) Using the extension Block
(Optional) You can also use an extension block to reduce the distance between the load cell and the lower setup.
- Install the load cell on the fast-exchange attachment by fastening the 4 captive screws using a 5/32" Allen wrench.
- Align the sensor so that the ribbon cable port is on the right-hand side
when viewed from the front.
- This ensures correct orientation in relation to the rear alignment features of the Quick Exchange.
Mounting the Argon Sensor on MFT-2000
- Install the load cell on the fast-exchange attachment by fastening the 4 captive screws using a 5/32" Allen wrench.
- The narrow side of the fast exchange plate’s should point to the left of the front load cell as this side will fit into the back of the sliding support.
- The front of the load cell is the face showing the Rtec logo and the unit calibration sticker.
(Optional) With Extension block:
(Optional) You can also use an extension block to reduce the distance between the load cell and the lower setup.
- Mount the block extension on the exchange plate with 4 4 x 10-32 x 1.250” long screws using 5/32 Allen wrench.
- Then the adaptor plate mounted on the extension block with 4 x 10-32 x .625” long screws using 5/32 Allen wrench.
- Install the load cell on the fast-exchange attachment by fastening the 4 captive screws using a 5/32" Allen wrench.
- The narrow side of the fast exchange plate’s should point to the left of the front load cell as this side will fit into the back of the sliding support.
- The front of the load cell is the face showing the Rtec logo and the unit calibration sticker.
Ensure the graphite adapter plate is installed
- Generally, the graphite plate is already installed on the load cell, make sure to have it installed to continue.
- Otherwise install it by fastening the 4 x 6-32 x .250” long screws using 7/64” Allen key.
Mounting the suspension

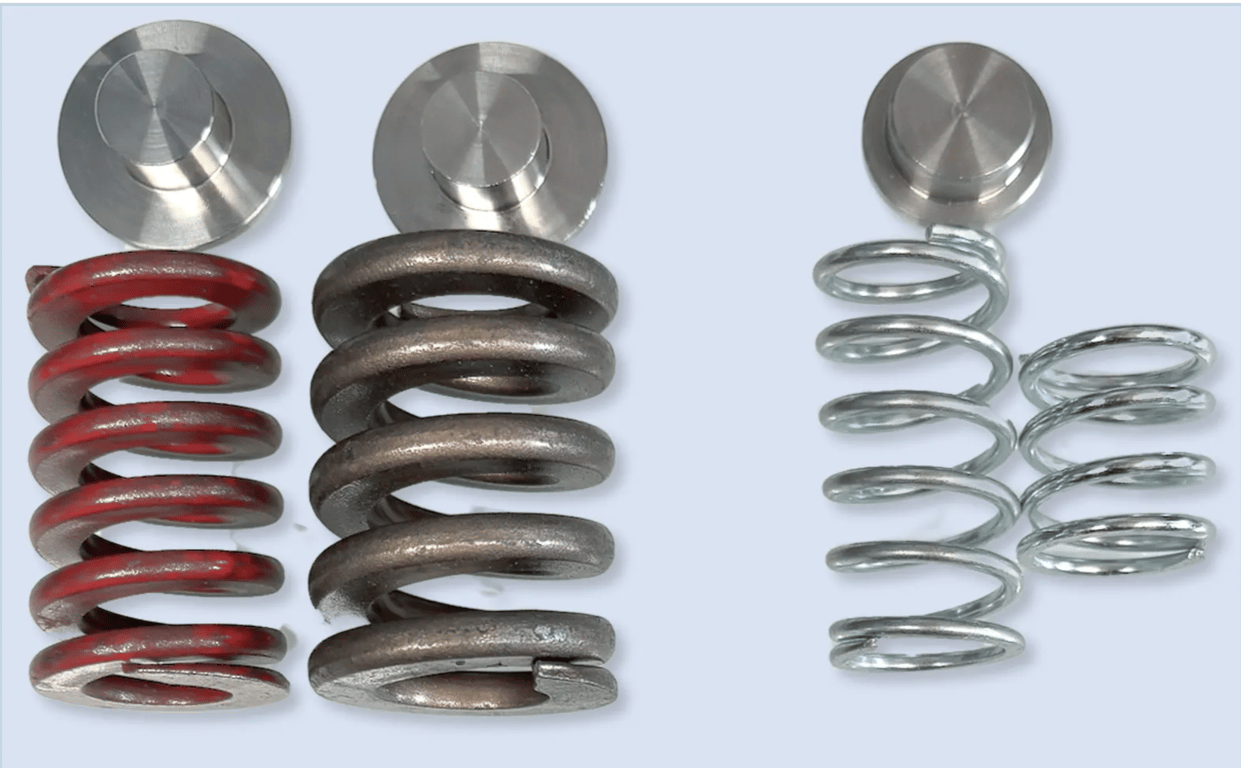

Choosing the right suspension purchased

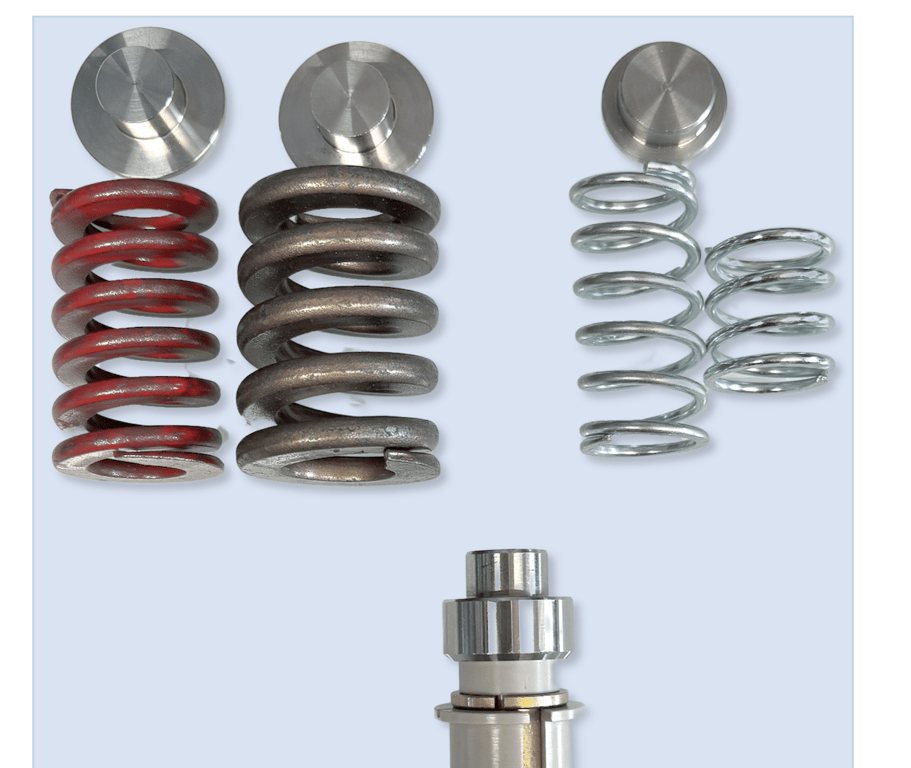

A suspension is used to limit the vibration induced by the sample during testing.
There are several variations of suspensions depending on the maximum load it can be effective on.
It is recommended to select a suspension system with the closest higher load rating to the expected load.

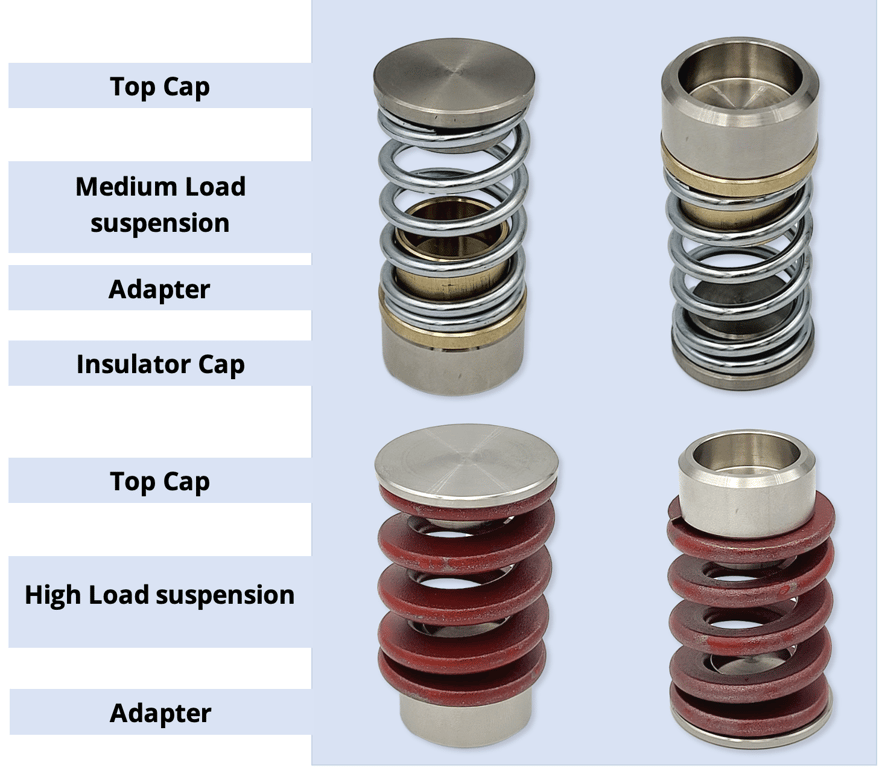

Medium to High Suspension List
Low Range Suspensions
Range and Components | SPN Number |
0.5N suspension L shape | SPN14015-508 |
1N suspension L shape | SPN14015-509 |
5N suspension L shape | SPN14015-510 |
10N suspension L shape | SPN14015-511 |
Low load sensor clamp Aluminum | SPN14039-512 |
Low load sensor clamp Steel | SPN14039-513 |
The labeled force represents the suspension capability, not the nominal operating force.
The suspension must be used within this specified range and exceeding this limit will lead to ineffective suspension operation.
The suspension must be used within this specified range and exceeding this limit will lead to ineffective suspension operation.

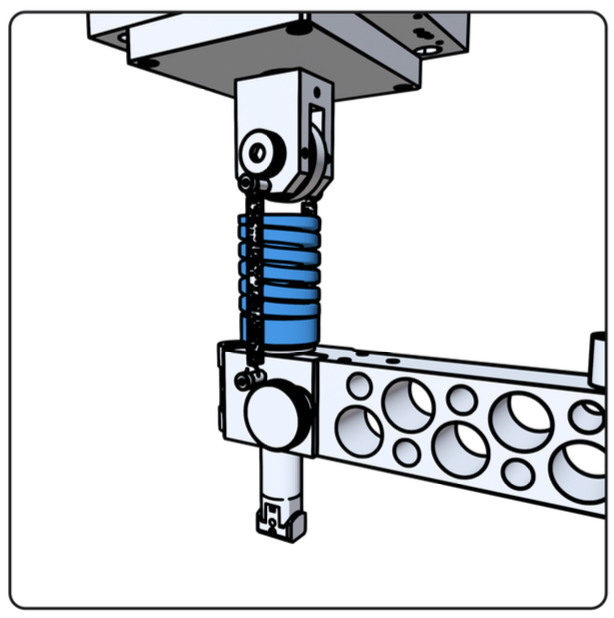

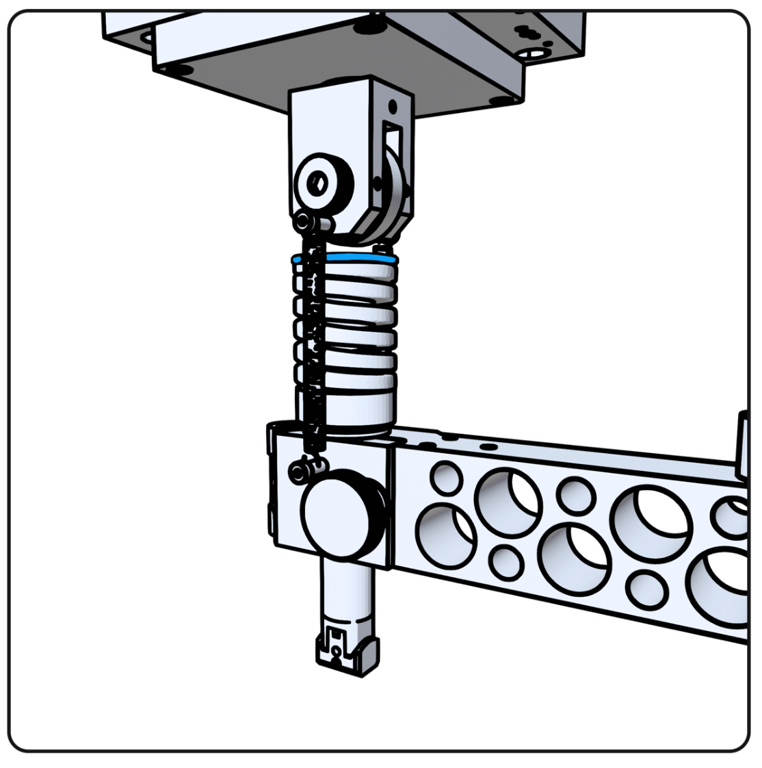

- Mount the suspension between the Argon Sensor and the Ball Holder
Plate by tightening the 2 captive screws using 9/64” Allen key.
The label of the suspension should face the same direction as the load cell sticker.
Pin/Ball holder preparation

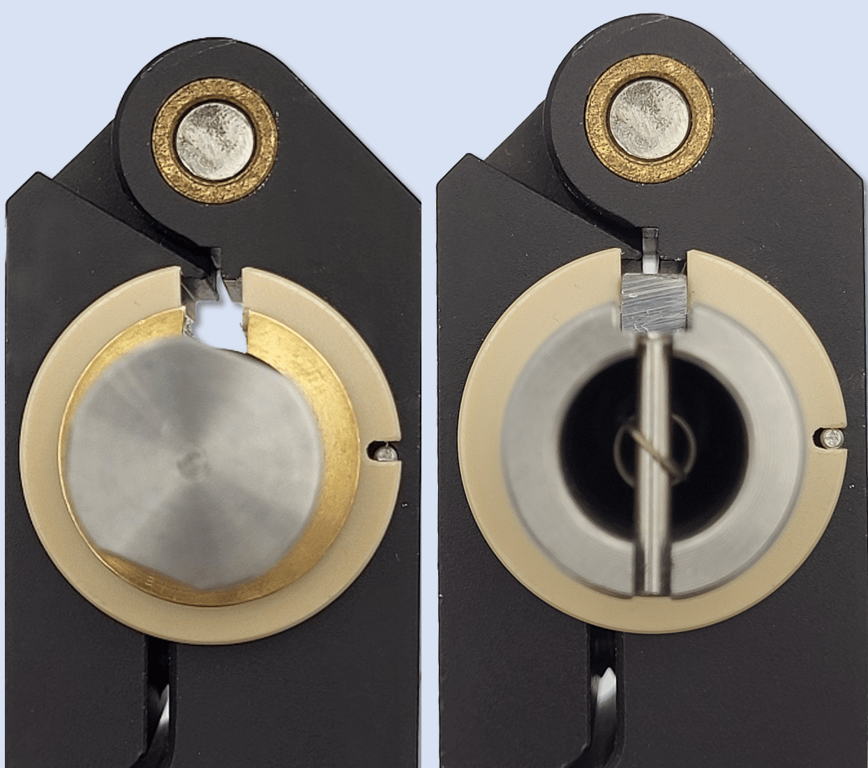

The ball holder along with the provided collet can also accommodate circular pins.
- Loosen the nut to free the ball.
- Insert the adjusting pin into the holder, then the ball.
Provided for standard test: Ball, .250" (1/4") (6.350mm) Dia
E52100 100Cr6 grade 25 Alloy Steel.
- Hold the holder vertically, so the ball is resting on the pin.
Using a 1/8" Allen key, fasten the screw inside the holder to slightly push the ball.
- Once the ball is retracted enough, fasten the nut to secure it.
.gif)
For preliminary testing: The ball may be reused by rotating it to expose a unworn contact surface.
For final measurements: It is recommended to employ a new ball for each test to ensure accuracy and reproducibility.
For final measurements: It is recommended to employ a new ball for each test to ensure accuracy and reproducibility.

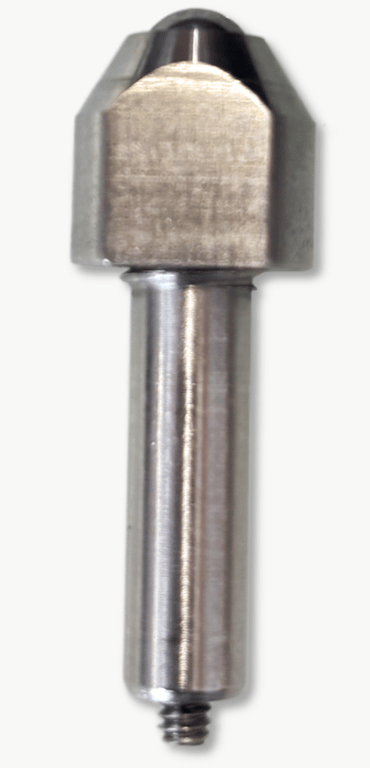

Extension holder
- Use the extension only in particular cases where the ball holder cannot reach the sample.
- Increasing the ball holder length can negatively affect test results, especially in reciprocating tests. Whenever possible, use the load cell extension block instead.
.gif)
(to reduce the distance towards the sample)
Universal Ball holder Overivew
1. Test Ball or Pin
Rtec balls catalog
Upper Sample Holder for 1000℃ Chamber
Upper Sample Holder for 1000℃ Chamber | Part no. |
0.5 inch ball | SPN030060-55 |
0.375 inch ball | SPN030060-54 |
0.25 inch ball | SPN030060-53 |
3 mm ball | SPN030060-56 |
6mm diameter cylinder | SPN030041-462 |
6.3mm diameter cylinder | SPN13108 |
9.5mm diameter cylinder | SPN030041-463 |
12.7mm diameter cylinder | SPN030041-464 |
15mm diameter cylinder | SPN030041-465 |
- E52100 Alloy Steel / HRC60
- 304 SSt / HRC25
- 440C SSt / HRC58
- WC Tungsten Carbide / HRC75
- SiN Silicon Nitride
- Nonporous Alumina Ceramic balls
- PTFE
Available Ball size :
- 1.6mm
- 3.9mm
- 6.3mm
- 9.5mm
- 12.7mm
5. Ball Holder
Holder Specification MSC 81197253
Collet Series | ER11 |
Shank Type | Straight |
Through Coolant | No |
Shank Diameter (Inch) | 5/8 |
Minimum Collet Capacity (Decimal Inch) | 0.0190 |
Maximum Collet Capacity (Decimal Inch) | 0.2760 |
Overall Length (Inch) | 3-1/2 |
Overall Length (Decimal Inch) | 3.5 |
Actuator Type | Wrench |
Shank Length (Decimal Inch) | 3.0300 |
Collet Nut Diameter (Decimal Inch) | 0.6200 |
For additional information or to place an order, please contact Rtec Support (contact information provided at the end of this manual).

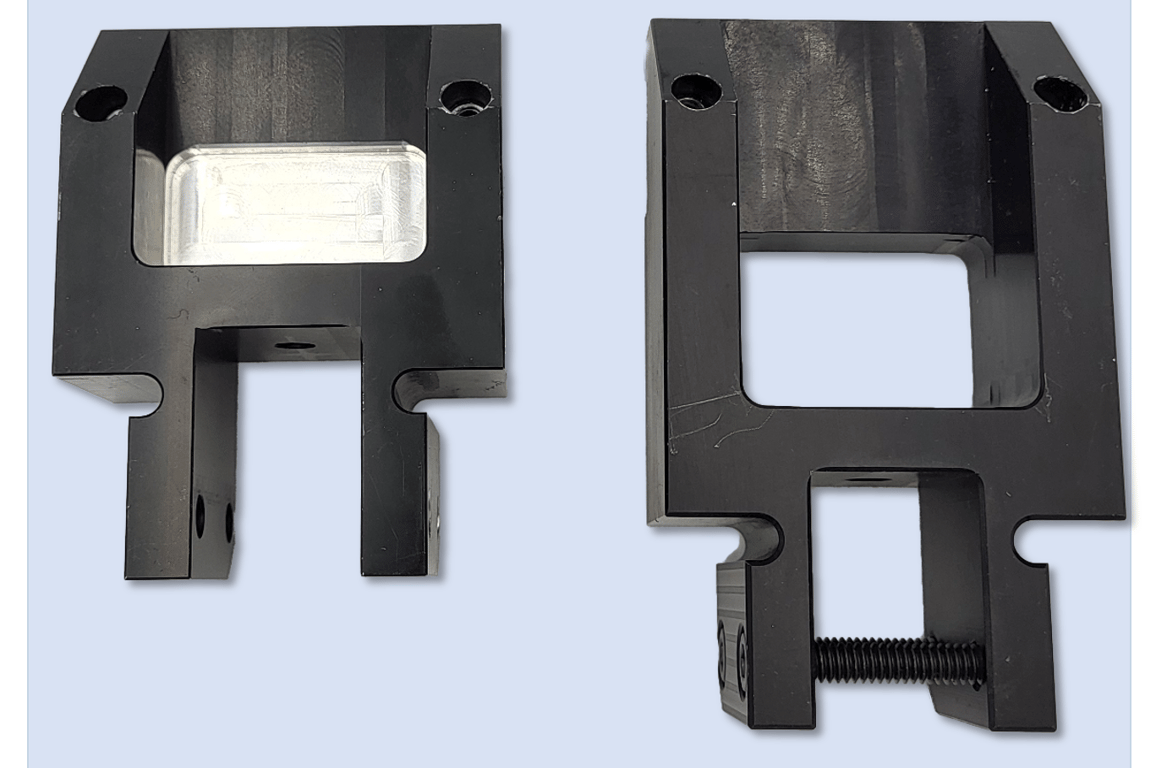

Self-Adjusting Block holder preparation
.gif)
The self-leveling block holder will ensure proper contact during the test.
- Firstly ,loosen the 2 tightening screws using /16” Allen key.
- Slide in the block sample into the block support
Avalaible ASTM Rtec Block Catalog
ASTM: D3704, G77, G176, D2714, D3704, D2509
- Level the block sufficiently into the holder.
- Tighten the securing screws on each side.
Installing the Ball Holder
- Use four 1/4” button head screws to secure the assembly to the load cell
and tighten using a 5/32” Allen wrench.

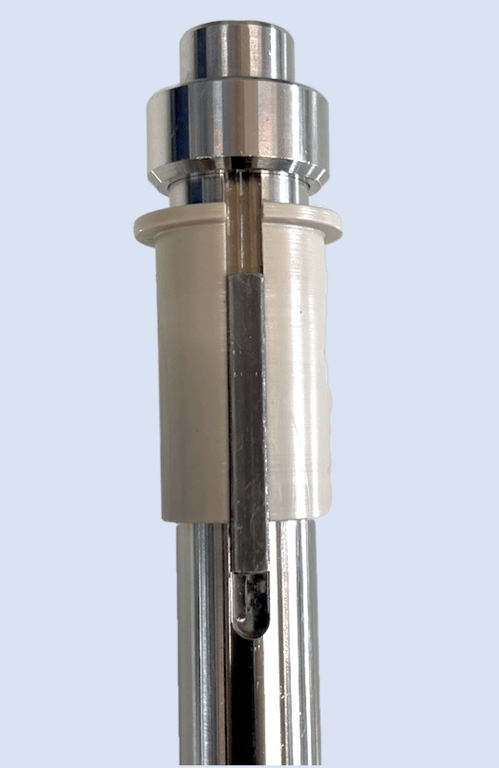

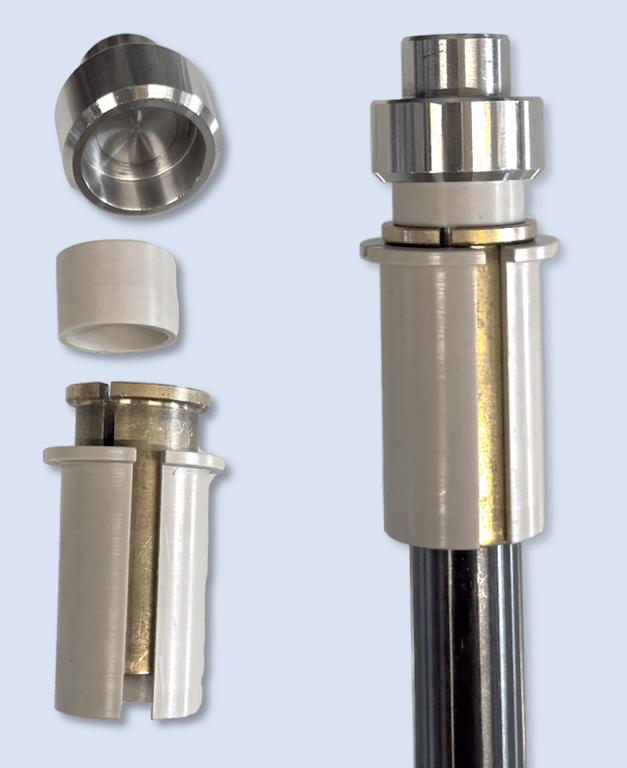

Then Insert the slip sleeve into the sensor mount.

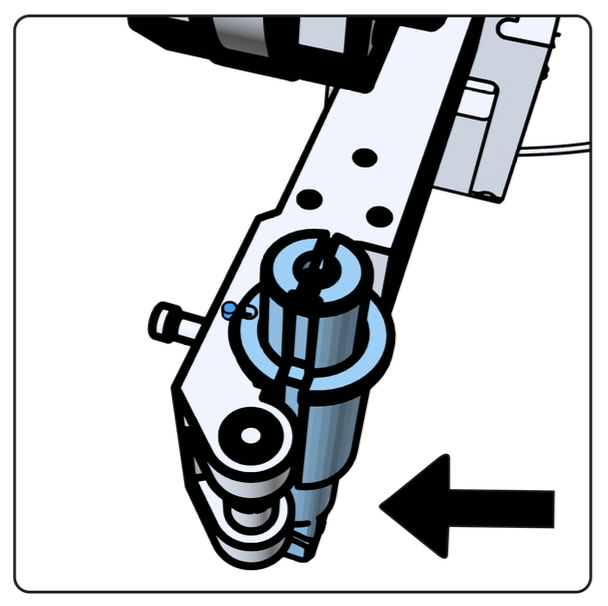

- Place the ball holder into the slip sleeve.
- Mount the Ball Holder onto the suspension in the same manner as onto
the load cell using a 9/64” Allen wrench.
It is recommended to install the ball holder as far as possible into the suspension while making sure that it does not hit the load cell when the suspension is fully compressed.
Installing the Argon (MFT-5000)
(1).gif)

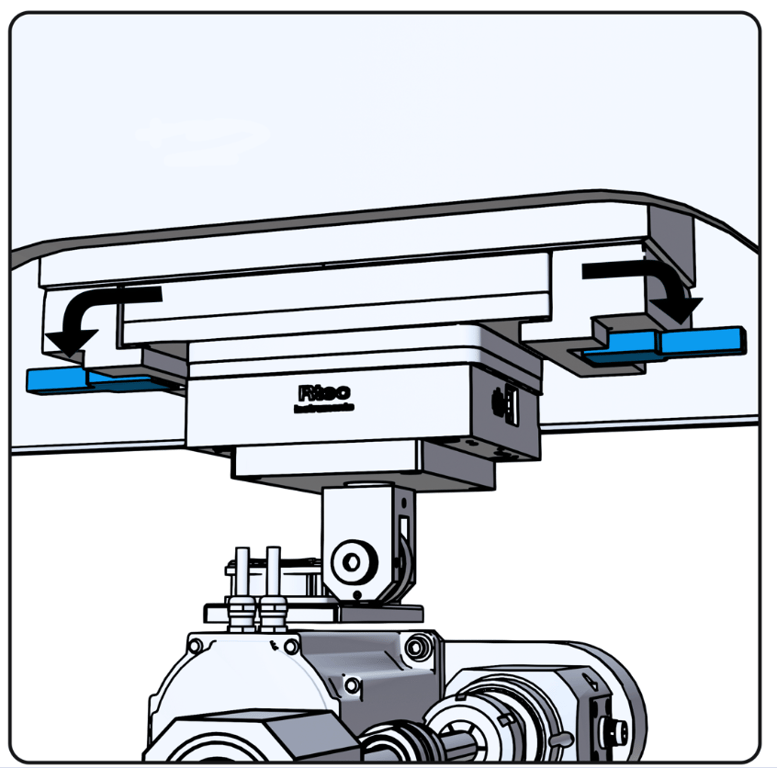

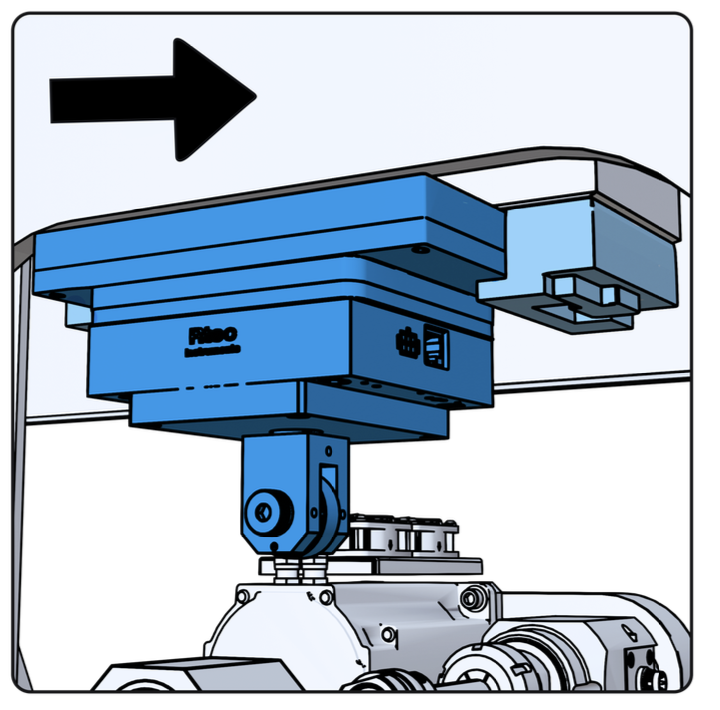

- Slide the sensor assembly with the Quick Exchange into the MFT-5000
Quick Exchange Dock - Ensure first that the locking wings are forward.
- The front of the load cell (Rtec logo and sticker) is facing you.
- Lift the Argon Assembly up while tightening the Quick Exchange locks
outward - Always hold the sensor by its sides to avoid applying force on the sensors.
- Make sure the assembly is firmly wedged up with no vertical play.

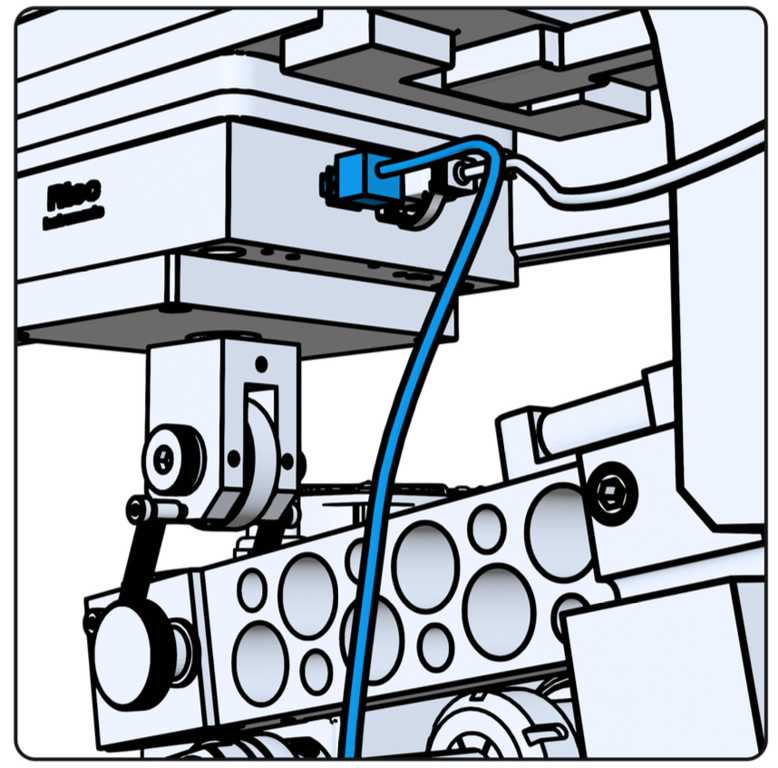

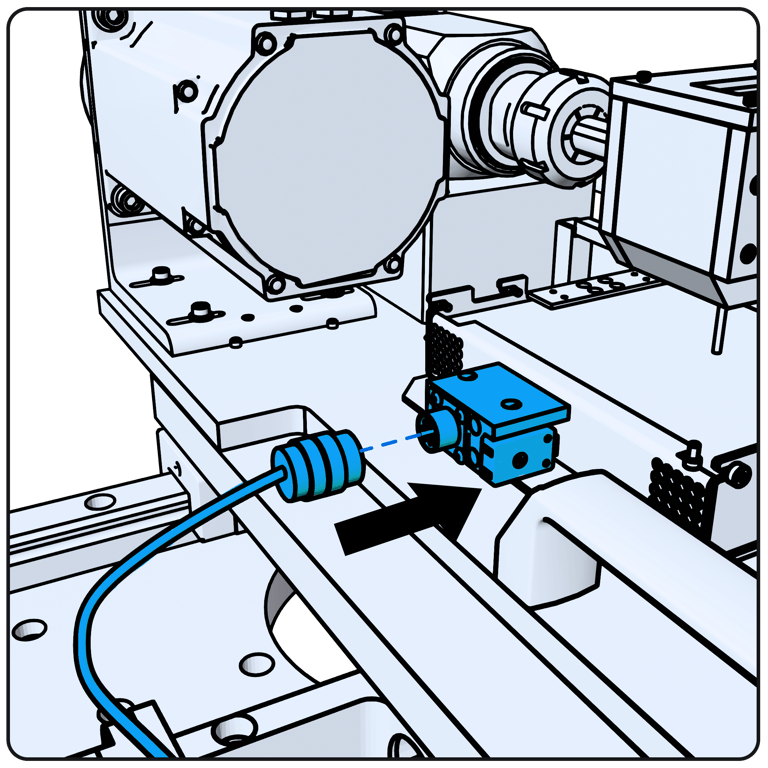

- Connect the ribbon cable to the Argon Load Sensor.
The connector only fit one way.
Installing the Argon (MFT-2000)
- Slide in the load cell into the Z stage rack.
Make sure the 4 screws above the rack are removed.
Slide the load cell with its front facing you and the connector on the right.
Slide the load cell with its front facing you and the connector on the right.
- Fasten the 4 securing screws by hands.
- Connect the ribbon cable. The connector only fit one way.
1D+1D
Required Tools and Components
Introduction
- This type of Load Cell is composed of 2 different parts, each one responsible for one axis of force.
- One arm with a piezo sensor will measure the friction force along Fx, while Fz will be applied and recorded by another component.
Arm montage (if dismounted)
The Fx sensor should come pre-built. However, if you need to build it, follow the following steps:
- Firstly, attach the horizontal arm to the vertical arm.
Screw the shoulder screw from the bottom hole with FHSHS 6-32 x .750” BM310271-08
There are 2 types of horizontal arms. The longer version is mostly used with environmental chambers. You need to select the arm depending on how long you want the ball holder to be.
- Fix the capacitive sensor to the vertical arm with 2 x 8-32 x .875” BM310290-11.
The sensor face with the threaded insert.
- Attach the friction arm to the pivot base with 8-32 x .375” BM310280-05 with a 9/64 » allen key.
Please refer to the 3 threads of the base which must point downward to ensure proper angular movement of the pivot base.
Mounting the Fz Load Cell
- Quick-exchange attachement
- Sliding plate
- Block extension
- Fz load cell
Ensure that the quick-exchange plate is properly mounted on top of the load cell:

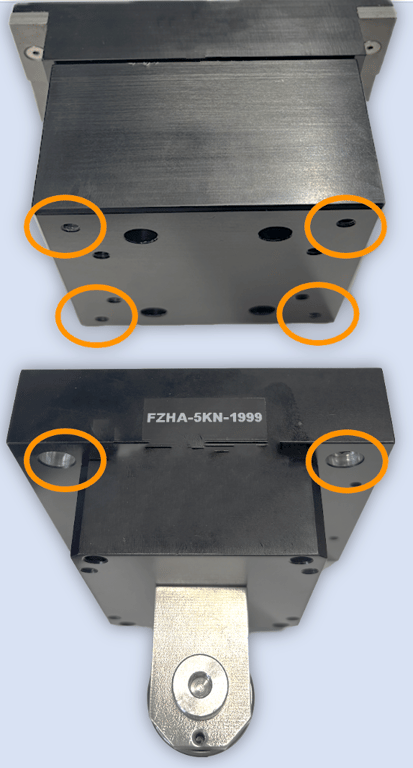

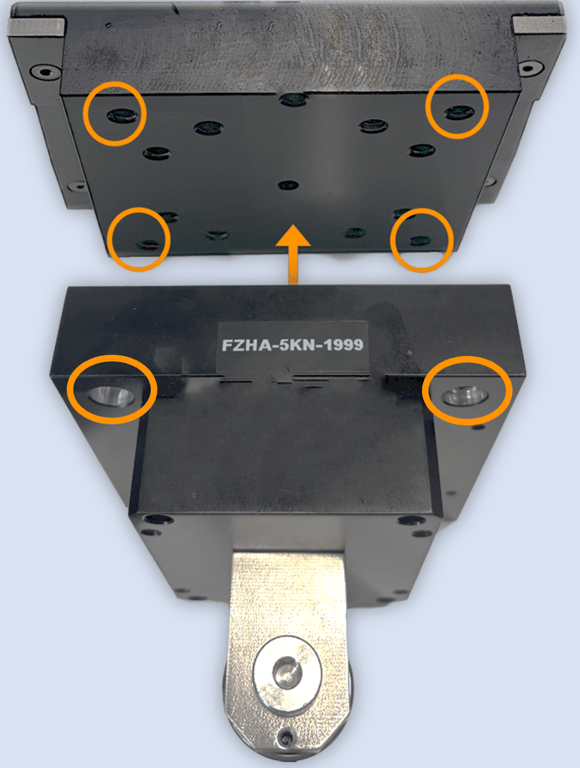

- Mount the fz load cell on the fast exchange plate and tighten the 4 captive screws.
(4 x 10-32 x 1.250” long using 5/32 Allen wrench).
Incorrect
- The fast exchange plate’s notch should be pointing on the opposite side of the front load cell as this notch will fit into the back of the sliding support.
- The front of the load cell is the face showing the Rtec logo and the unit calibration sticker.

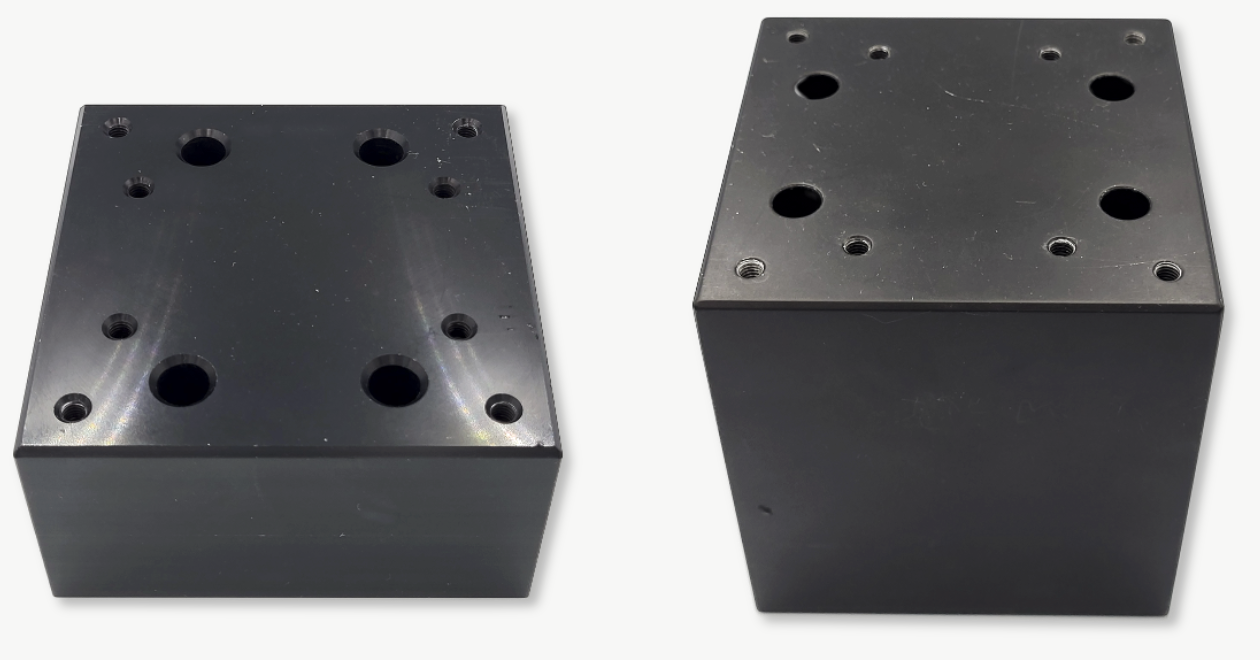

(Optional) With Extension blocks:
You can also use an extension block to reduce the distance between the load cell and the lower setup.
- Mount the block extension on the exchange plate with 4 4 x 10-32 x 1.250” long screws using 5/32 Allen wrench.
- Install the load cell mounted on the extension block with the 4 captives screws.
(4 x 10-32 x 1.250” long using 5/32 Allen wrench).

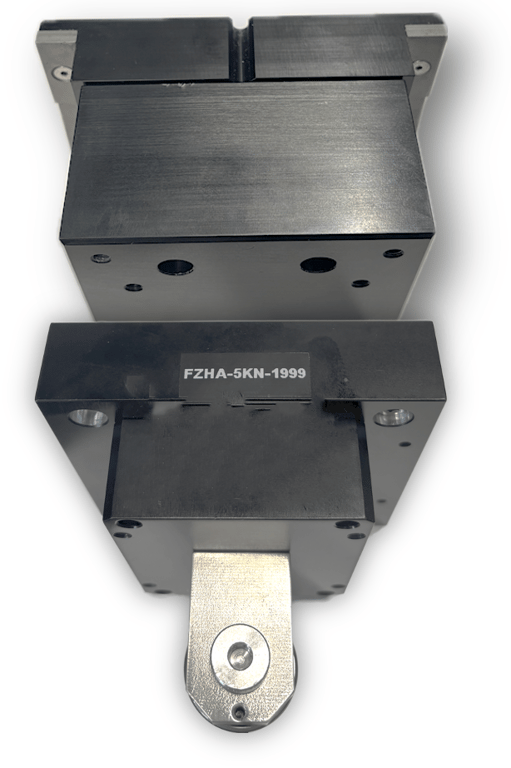

- The fast exchange plate’s notch should be pointing on the opposite side of the front load cell as this notch will fit into the back of the sliding support.
- The component at the top of the picture is the fast exchange adapter.
- The front of the load cell is the face showing the Rtec logo and the unit calibration sticker.

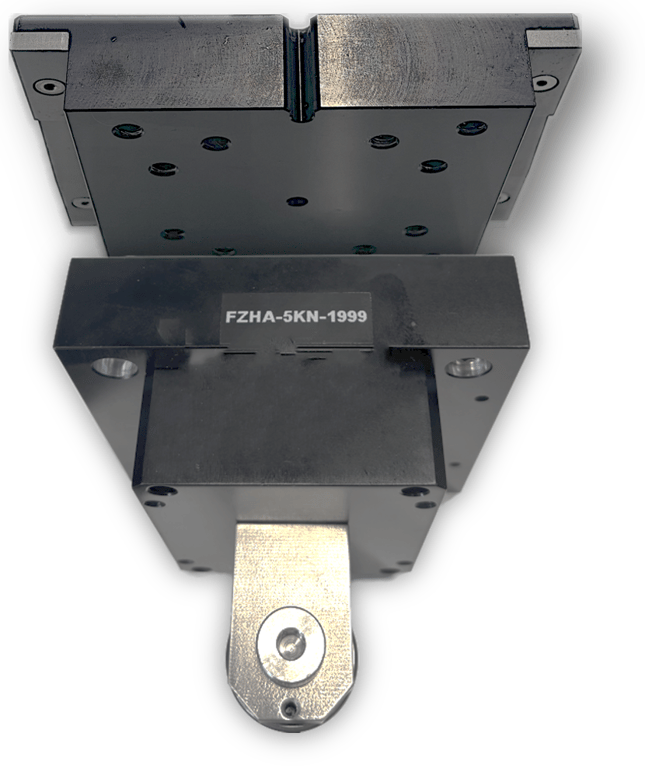

Incorrect
Install the Fz load Cell

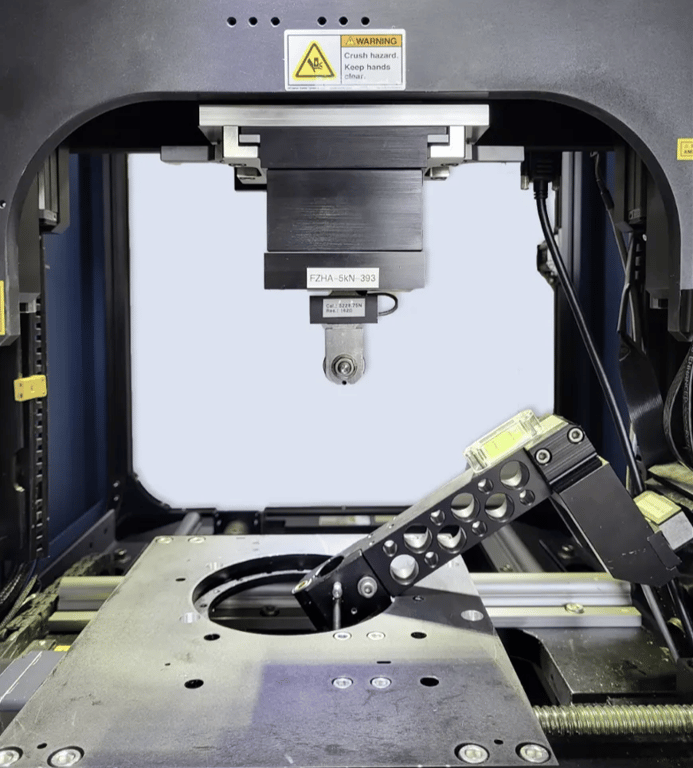

- Lower the Z-Axis all the way down using the jogbox Z-axis control.
- Slide the FZ-1D arm into the quick-exchange mount.
- Secure the arm by locking it in place.
Always power off the instrument before connecting or installing any load cell
or accessory.
or accessory.
Mount the Fx-1D Arm
- Remove the right panel of the MFT to access to the fixation hole and sticker
- Position yourself at the right frame of the MFT and place the back of the arm (the pivot base)against the frame, making sure the base of the arm is pressed against it.

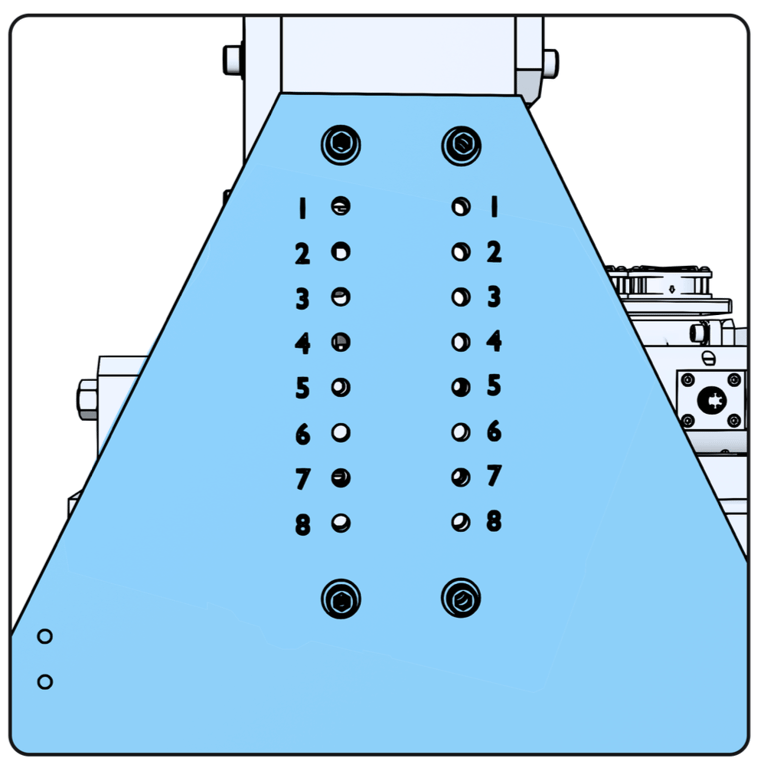

Refer to the alignment guide on the side of the instrument to determine
the correct mounting holes.
the correct mounting holes.
The level of the friction arm depends on the configuration.
ex: For the block-on-ring configuration without heating chamber, use
positions 5 and 7.
positions 5 and 7.
- Attach the friction arm to the instrument using the 1.125-inch screws and washers to secure the arm. (1/4-20 x 1.000” BM310340-09). Hand-tighten initially; fully tighten with the 3/16” Allen Key after final adjustments.
Mount the Spring Assembly
- Use a 5/64" Allen wrench to mount the springs to the front and back of the Fx-1D arm.
- Ensure proper tension and secure the spring assembly.
Attach the Load Cell Cables
- Connect the Sensor Cable
- Connect the Fx Arm Cable to the Fz Load Cell
- Raise the Fz-1D Load Cel
Pin/Ball holder preparation
The ball holder along with the provided collet can also accommodate circular pins.
- Loosen the nut to free the ball.
- Insert the adjusting pin into the holder, then the ball.
Provided for standard test: Ball, .250" (1/4") (6.350mm) Dia
E52100 100Cr6 grade 25 Alloy Steel.
- Hold the holder vertically, so the ball is resting on the pin.
Using a 1/8" Allen key, fasten the screw inside the holder to slightly push the ball.
- Once the ball is retracted enough, fasten the nut to secure it.
For preliminary testing: The ball may be reused by rotating it to expose a unworn contact surface.
For final measurements: It is recommended to employ a new ball for each test to ensure accuracy and reproducibility.
For final measurements: It is recommended to employ a new ball for each test to ensure accuracy and reproducibility.
Extension holder
- Use the extension only in particular cases where the ball holder cannot reach the sample.
- Increasing the ball holder length can negatively affect test results, especially in reciprocating tests. Whenever possible, use the load cell extension block instead.
(to reduce the distance towards the sample)
Universal Ball holder Overivew
1. Test Ball or Pin
Rtec balls catalog
Upper Sample Holder for 1000℃ Chamber
Upper Sample Holder for 1000℃ Chamber | Part no. |
0.5 inch ball | SPN030060-55 |
0.375 inch ball | SPN030060-54 |
0.25 inch ball | SPN030060-53 |
3 mm ball | SPN030060-56 |
6mm diameter cylinder | SPN030041-462 |
6.3mm diameter cylinder | SPN13108 |
9.5mm diameter cylinder | SPN030041-463 |
12.7mm diameter cylinder | SPN030041-464 |
15mm diameter cylinder | SPN030041-465 |
- E52100 Alloy Steel / HRC60
- 304 SSt / HRC25
- 440C SSt / HRC58
- WC Tungsten Carbide / HRC75
- SiN Silicon Nitride
- Nonporous Alumina Ceramic balls
- PTFE
Available Ball size :
- 1.6mm
- 3.9mm
- 6.3mm
- 9.5mm
- 12.7mm
5. Ball Holder
Holder Specification MSC 81197253
Collet Series | ER11 |
Shank Type | Straight |
Through Coolant | No |
Shank Diameter (Inch) | 5/8 |
Minimum Collet Capacity (Decimal Inch) | 0.0190 |
Maximum Collet Capacity (Decimal Inch) | 0.2760 |
Overall Length (Inch) | 3-1/2 |
Overall Length (Decimal Inch) | 3.5 |
Actuator Type | Wrench |
Shank Length (Decimal Inch) | 3.0300 |
Collet Nut Diameter (Decimal Inch) | 0.6200 |
For additional information or to place an order, please contact Rtec Support (contact information provided at the end of this manual).
Ball holder Spring Setup
Sleeve, insulator cap and the adaptor are placed on the top of the holder.
in order to be used with the suspensions.
.gif)
![]()
For more information
A suspension is used to limit the vibration induced by the sample during testing. There are several variations of suspensions depending on the maximum load it can be effective on. .
It is recommended to select a suspension system with the closest higher load rating to the expected load.
For example, if you realize a test at 150N, you would need to use the 200N suspension. By doing so, you will mitigate the vibrations the most.
It is recommended to select a suspension system with the closest higher load rating to the expected load.
For example, if you realize a test at 150N, you would need to use the 200N suspension. By doing so, you will mitigate the vibrations the most.
Block holder Spring Setup
Sleeve, insulator cap and the adaptor are placed on the top of the holder.
in order to be used with the suspensions.
- Slide in the block holder adapter sleeve.
- Add the first cap to the top of the ball holder.
- Place the spring onto the cap.
- Add the top cap on top of the spring.
(1)_(1).gif)
The pictures below show the actual montage step directly on the arm.
Follow the next step to continue
Self-Adjusting Block holder preparation
The self-leveling block holder will ensure proper contact during the test.

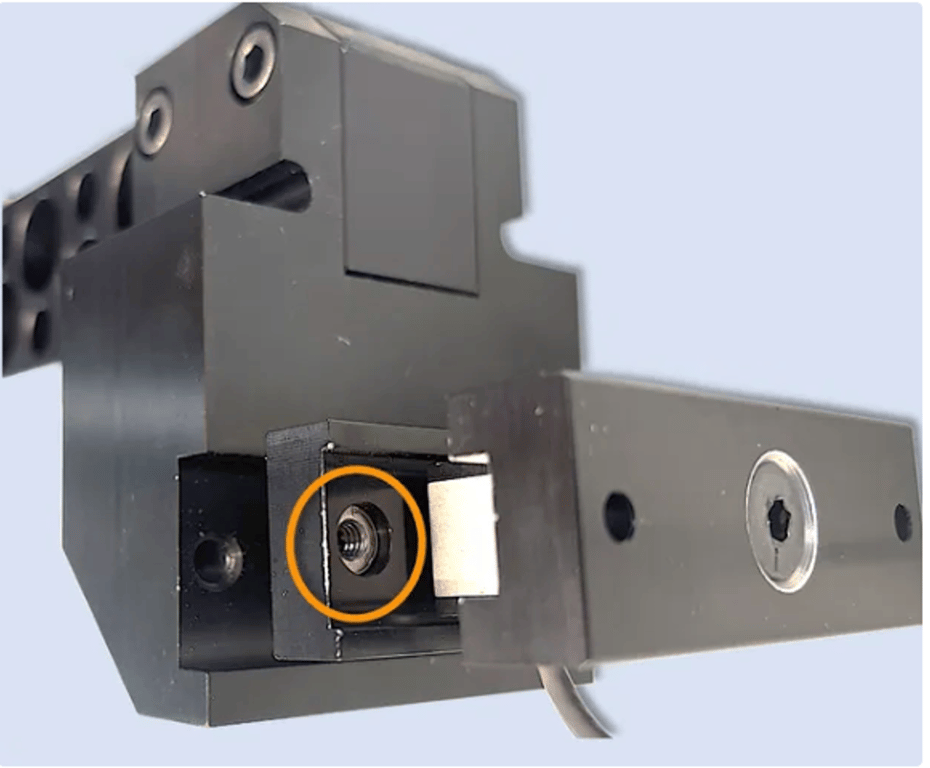

- Firstly ,loosen the 2 tightening screws using /16” Allen key.
- Slide in the block sample into the block support
Avalaible ASTM Rtec Block Catalog
ASTM: D3704, G77, G176, D2714, D3704, D2509
- Level the block sufficiently into the holder.
- Tighten the securing screws on each side.
Installing the montage into the arm

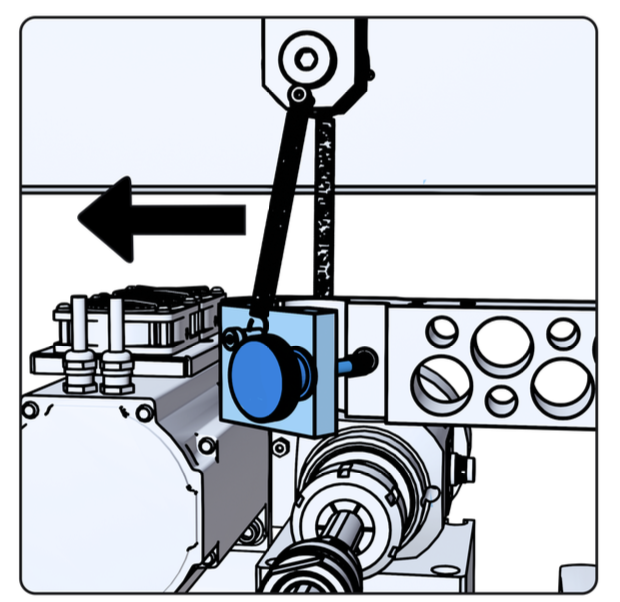

- Unscrew the thumb screw/knob present on the front of the arm
You can now open the securing block and insert the holder.
- Insert the holer onto the arm and align the slot on the sleeve with the alignment pin on the arm.
The flange of the insulator sleeve must be positioned towards the top of the block holder
For the block holder: Make sure that the notch matches the extrusion of the block holder
For the block holder: Make sure that the notch matches the extrusion of the block holder
- Slide the sleeve into position and loosely secure it.

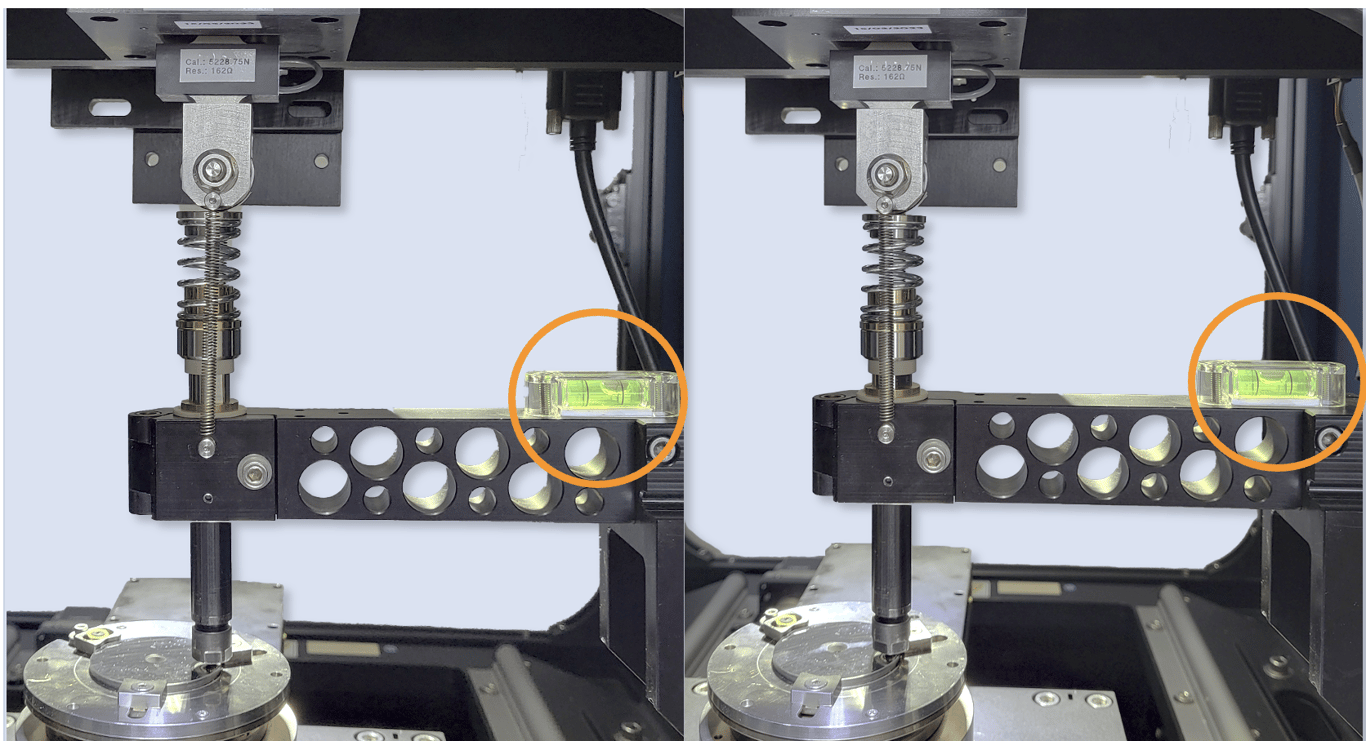

Level the arm
Use the built-in level on the 1D arm to ensure the arm is mounted horizontally.
- Manually press the arm so the ball holder contacts the sample, as the level must be evaluated when the pin/ball is in contact with the surface.
- Slightly loosen the tightening screw/knob.
- Adjust the arm position up or down until the level indicator shows proper alignment.
- Once the 1D arm and block holder aligned and level, tighten the sleeve
securely.
The collets must be fully inserted into the arm
- The ball holder and arm can remain suspended
Confirm the assembly is secure and aligned
Please verify this important aspect of the setup, as they can be easily forgotten or ignored, possibly affecting the quality of the testing and result.
Block-On-Ring (BOR) Module
Required Tools and Components
Components
- Block-on-Ring Drive
- XY Stage with Direct Drive Motor
- 500°C Chamber (optional)
- Shaft and Liquid Container
- Shaft Support
- Block Holder
- Electrical Connectors
- Thermocouple and Power Cables (for chamber)
Screws and Hardware
- (4x) 8-32 screws, 0.75” long
- (3x) 10-32 screws, 0.625” long
- (1x) 5/16-18 screw with clip washer
- Allen wrenches: 9/64", 1/4", 1.25"
- ER-32 collet wrenches (provided)
Mounting the Block-on-Ring Drive
- Slide the drive onto the XY stage, aligning it to the front right corner while pressing down to avoid tilting.
- Secure the drive with two 8-32 screws (0.75” long) using a 9/64” Allen wrench.
- Do not fully tighten until alignment is verified.
- Once aligned, fully tighten all screws.
Connecting the Block-on-Ring
Mounting the bearing sample
.gif)
- First slide in the roller bearing sample.
- A4138: 35mm OD
Tapered-Roller Bearing Outer Ring, 1-3/8" (35mm) OD, 11/32" W - 09195: 49mm OD
Tapered-Roller Bearing Outer Ring, 1-15/15" (49mm) OD, 9/16" W - 6206-C3 Open Ball Bearing 30mm x 62mm x 16mm
Rtec Catalog
TIMKEN Tapered-Roller Bearing
FAG Open Ball Bearing
- Then the washer identifiable by it notch.
the notch fit into the keyed pin’s shaft.
- Last, the locknut, identifiable by it wrench flat.
- Tighten the locknut using a wrench to secure the whole.
Mounting a bearing wheels sample
The Shaft assembly AM000188-00 (different from the previous Tapered-Roller Bearing shaft) is needed to mount the bearing wheel.
- First slide in the bearing wheels sample.
- Then the washer identifiable by it notch.
the notch fit into the keyed pin’s shaft.
- Last, the locknut, identifiable by it wrench flat.
- Tighten the locknut using a wrench to secure the whole.
Brand Technical Specification and custom sample
TIMKEN Roller Specification
FAG Bearing Wheels Specification
Property | Specification | Notes / Source |
Bearing type | Deep groove ball bearing | Standard single-row radial bearing |
Model designation | 6206-C3 | “C3” = greater internal clearance |
Bore (inner Ø) | 30 mm | — |
Outer Ø | 62 mm | — |
Width | 16 mm | — |
Dynamic load rating (Cᵣ) | ≈ 20,700 N | abf.store |
Static load rating (C₀ᵣ) | ≈ 11,300 N | abf.store |
Limiting speed (open) | ≈ 16,200 rpm | abf.store |
Reference speed | ≈ 12,000 rpm | abf.store |
Internal clearance | C3 = greater than normal | For high-speed or thermal expansion conditions |
Seal type | Open (no suffix) | 2Z = metal shields / 2RS = rubber seals if specified |
Design generation | Generation C | Lower friction, improved noise & vibration |
Contact angle | 0° (radial contact) | Typical for deep groove type |
Temperature range | −30 °C to +120 °C (typical) | Depends on grease/lubrication |
Material | Through-hardened chromium steel | FAG standard |
Manufacturer | Schaeffler / FAG (Germany) | — |
Dry Ambient Test
Slide the shaft through the BOR Drive
- Begin with the rear collet (1.5” taper) and tighten using the provided wrenches.
- Then tighten the front collet (36 mm taper).
If the shaft is not correctly tightened, it will rotate freely within the drive instead of transferring torque to the shaft.
Attaching the Shaft Support
- Slide in to position the front shaft support using the built-in alignment pins (Give it a strong push if needed).
- Secure the shaft by pulling the two levers to the horizontal thigtening position.
.gif)
Liquid Ambient Test
Liquid Container: Components and Tools
Components
- Liquid Container Assembly
- Top Cover
- Gasket
- Block-on-Ring Shaft
o Detachable Front Door (with two alignment pins)
Screws and Hardware
- (4x) 6-32 x 0.375 in screws (for securing door)
- (4x) 4-40 x 0.25 in screws (for securing cover)
- 7/64" Allen Wrench (for door screws)
- 3/32" Allen Wrench (for top cover screws)
Position the Shaft onto the Container
- Identify the side of the block-on-ring shaft without screws.
- Insert this screw-less side into the main frame of the liquid container.
Close the Front Door
- Position the detachable door so that the alignment pins insert smoothly into the corresponding holes.
- Ensure the side of the shaft with screws is aligned with the side of the container that has tubing.
Secure the Door
- Using four (4) 6-32 x 0.375 inch screws, hand-tighten the door into place.
- Use a 7/64" Allen wrench to finish tightening. Do not overtighten.
Mount the Gasket and Top Cover
Install the Block-on-Ring support bracket
The side with the mounting hole should face the front.
- Secure with 10-32 screws (0.625” long).
Slide the shaft through the BOR Drive
- Ensure the tubing end is at the back.
- Align the liquid container with the two alignment pins on the support.
Attaching the Shaft Support
- Slide in to position the front shaft support using the built-in alignment pins (Give it a strong push if needed).
- Secure the shaft by pulling the two levers to the horizontal thigtening position.
Heating Test
500° Heating BOR
Dry Test

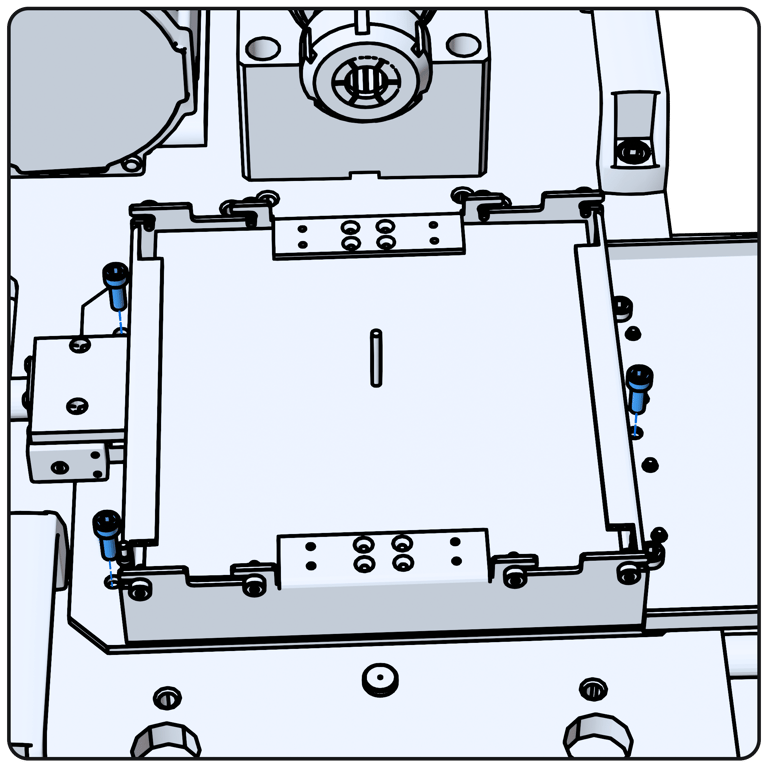

Installing the 500°C Chamber Base
- Mount the chamber base using three 10-32 screws (0.625” long) and a 5/32” allen wrench.
- Use the provided holes on the XY plate.
Slide the shaft through the BOR Drive
- Begin with the rear collet (1.5” taper) and tighten using the provided wrenches.
- Then tighten the front collet (36 mm taper).
If the shaft is not correctly tightened, it will rotate freely within the drive instead of transferring torque to the shaft.

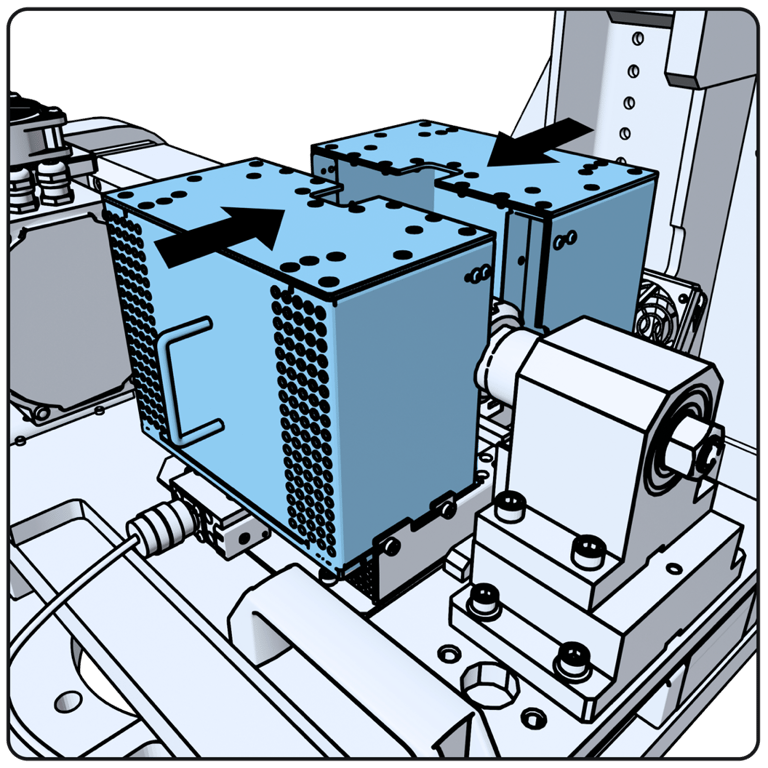

Installing the 500°C BOR Chamber
- Ensure the clamp closures are on the outside.
- Connect the power cable and thermocouple cable.
Attaching the Shaft Support
- Slide in to position the front shaft support using the built-in alignment pins (Give it a strong push if needed).
- Secure the shaft by pulling the two levers to the horizontal thigtening position.
Liquid Test
Installing the 500°C Chamber Base
- Mount the chamber base using three 10-32 screws (0.625” long) and a 5/32” allen wrench.
- Use the provided holes on the XY plate.
Liquid Container: Components and Tools
Components
- Liquid Container Assembly
- Top Cover
- Gasket
- Block-on-Ring Shaft
o Detachable Front Door (with two alignment pins)
Screws and Hardware
- (4x) 6-32 x 0.375 in screws (for securing door)
- (4x) 4-40 x 0.25 in screws (for securing cover)
- 7/64" Allen Wrench (for door screws)
- 3/32" Allen Wrench (for top cover screws)
Position the Shaft onto the Container
- Identify the side of the block-on-ring shaft without screws.
- Insert this screw-less side into the main frame of the liquid container.
Close the Front Door
- Position the detachable door so that the alignment pins insert smoothly into the corresponding holes.
- Ensure the side of the shaft with screws is aligned with the side of the container that has tubing.
Secure the Door
- Using four (4) 6-32 x 0.375 inch screws, hand-tighten the door into place.
- Use a 7/64" Allen wrench to finish tightening. Do not overtighten.
Mount the Gasket and Top Cover
Slide the shaft through the BOR Drive
- Begin with the rear collet (1.5” taper) and tighten using the provided wrenches.
- Then tighten the front collet (36 mm taper).
If the shaft is not correctly tightened, it will rotate freely within the drive instead of transferring torque to the shaft.
Installing the 500°C BOR Chamber
- Ensure the clamp closures are on the outside.
- Connect the power cable and thermocouple cable.
Attaching the Shaft Support
- Slide in to position the front shaft support using the built-in alignment pins (Give it a strong push if needed).
- Secure the shaft by pulling the two levers to the horizontal thigtening position.
Contact & Support
For technical support or further assistance, please contact:
Rtec-Instruments Support
support@rtec-instruments.com
+1 (408) 708-9226
Manual Version | Date | Update Description |
ㅤ | ㅤ | Initial Manual Version |
Made with Bullet
